View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

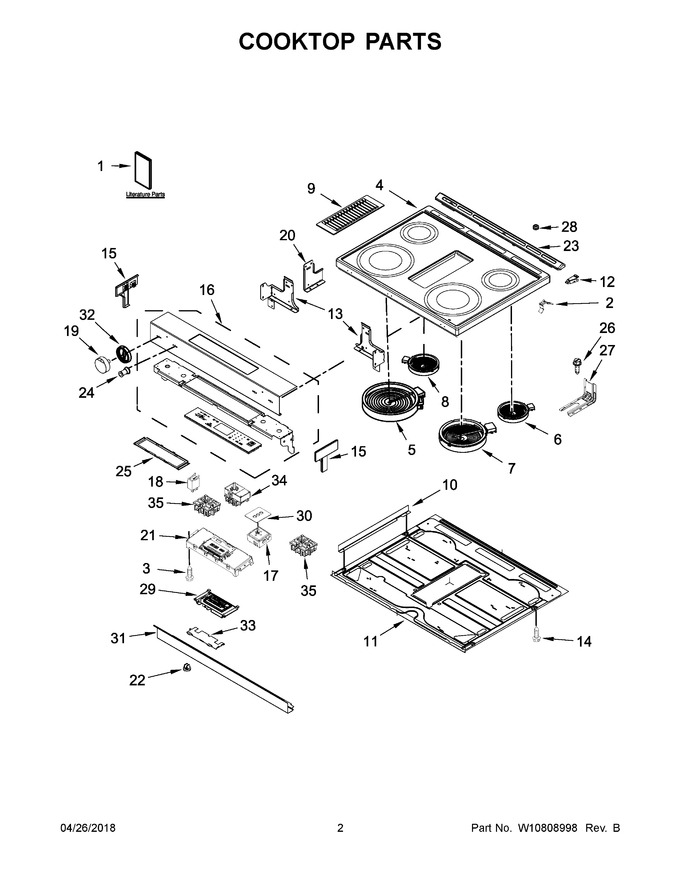

02 - Cooktop Parts
03 - Chassis Parts
04 - Blower Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10787365 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10813359 | Cooktop (stainless) (Replaces: W10669572) |
|
$ 1,202.19 | |||||
| 5 | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 8 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 9 | W11211500 | Grill, Air (Replaces: W10575593) |
|
Immediately | $ 248.38 | ||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 77.91 | |||||
| 11 | W10561812 | Pan, Radiant |
|
- | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10555937 | Endcap (stainless (left)) |
|
$ 67.95 | |||||
| 16 | W10915815 | Console (stainless) (Replaces: W10697331) |
|
Immediately | $ 821.96 | ||||
| 17 | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 19 | W10877180 | Knob (stainless (right Rear)) (Replaces: W10579762) |
|
Immediately | $ 72.20 | ||||
| 20 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 21 | W11100515 | Control Mrc2 (Replaces: W10658111) |
|
Immediately | $ 428.16 | ||||
| 22 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 23 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 26 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 23.03 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 29 | WPW10603096 | Assembly, Display (Replaces: W10603096) |
|
Immediately | $ 263.08 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 10.57 | ||||
| 31 | W10743276 | Console, Lower Panel (stainless) |
|
$ 86.68 | |||||
| 32 | W10813558 | Bezel (stainless) (Replaces: W10663809) |
|
Immediately | $ 76.88 | ||||
| 33 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 34 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 35 | W10917724 | Switch, Infinite (right Front And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 15A | W10555940 | Endcap (stainless (right)) |
|
$ 67.95 | |||||
| 19A | W11628652 | Knob (stainless (left Rear)) (Replaces: W10579763) |
|
$ 74.80 | |||||
| 19B | W11568640 | Knob (stainless (right Front)) (Replaces: W10579764) |
|
Immediately | $ 68.38 | ||||
| 19C | W10696937 | Knob (stainless (left Front)) |
|
- | |||||
| 1A | W10750369 | User Instructions |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400067 | Guide, Quick Start (french) |
|
- | |||||
| 1G | W10750127 | Wiring Diagram |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10580254 | Harness, Main |
|
$ 254.16 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 236.93 | ||||
| NI | W10580264 | Harness, Console |
|
$ 257.81 | |||||
| NI | W11171878 | Harness, Cooktop (Replaces: W10580253) |
|
Immediately | $ 207.95 | ||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 |
