SELECT A DIAGRAM

01 - Cover Sheet

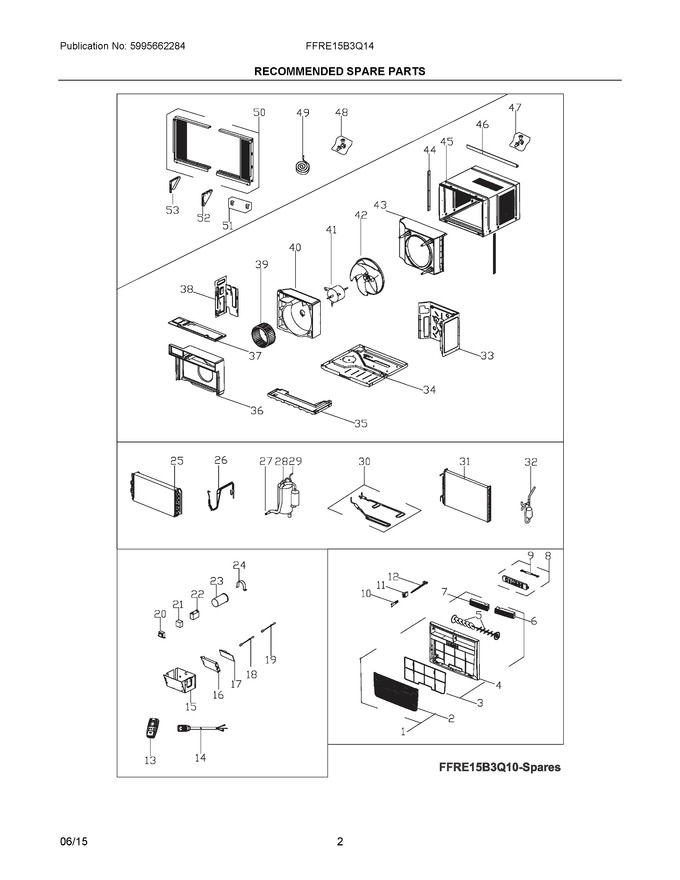

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304496308		Front Assembly, Complete Panel		Appelez-nous	-
2	5304476943		Panel, Front Grille, Tilt-out		Appelez-nous	-
3	5304476944		Filter, Air		Appelez-nous	-
4	5304496309		Panel, Frame, Front		Appelez-nous	-
5	5304476946		Louver, Vertical		Appelez-nous	-
6	5304476947		Louver, Horizontal, Right		Appelez-nous	-
7	5304476948		Louver, Horizontal, Left		Appelez-nous	-
8	5304501857		Pc Board, Display/input		Appelez-nous	-
9	5304496251		Wire, Connector, Pc Boards		Appelez-nous	-
10	5304495010		Handle, Vent Control		Appelez-nous	-
11	5304529409		Link, Lever/vent Door, Detente   (Replaces: 5304476359)		Appelez-nous	-
12	5304476950		Door, Vent Control, With Lever		Appelez-nous	-
13	5304476802		Remote Control, Transmitter				$ 115.67
14	5304536807		Power Cord, Electric, Lcdi   (Replaces: 5304500884)				$ 140.95
15	5304495623		Control Box		Appelez-nous	-
16	5304495029		Holder, Mounting Plate, Control		Appelez-nous	-
17	5304496252		Pc Board, Main, Control/power		Appelez-nous	-
18	5304504724		Sensor, Ambient Temp, Thermistor   (Replaces: 5304487548)				$ 19.85
19	5304512375		Sensor, Temperature, Evaporator   (Replaces: 5304471383)				$ 33.16
20	5304470989		Transformer				$ 94.98
21	5304472559		Ionizer, Anion Generator		Appelez-nous	-
22	5304483052		Capacitor, Fan Motor		Appelez-nous	-
23	5304493840		Capacitor, Compressor		Appelez-nous	-
24	5304477345		Strap, Capacitor Clamp		Appelez-nous	-
25	5304500886		Evaporator, +capillary Tube		Appelez-nous	-
26	5304500887		Tube, Capillary		Appelez-nous	-
27	5304495654		Tube, Suction		Appelez-nous	-
28	5304499937		Compressor, With Overload		Appelez-nous	-
29	5304495637		Tube, Discharge		Appelez-nous	-
30	5304495628		Tube, Condensate Evap, Drain Pan		Appelez-nous	-
31	5304495629		Condenser		Appelez-nous	-
32	5304476367		Filter-drier				$ 45.55
33	5304495630		Bulkhead, Partition, Front/right		Appelez-nous	-
34	5304476368		Base, Unit Chassis		Appelez-nous	-
35	5304472530		Tray, Drip Pan		Appelez-nous	-
36	5304495631		Scroll, Blower Housing, Front		Appelez-nous	-
37	5304495632		Cover, Blower Scroll, Front		Appelez-nous	-
38	5304495633		Bulkhead, Partition, Front/left		Appelez-nous	-
39	5304486010		Blower Wheel, Centrifugal Fan		Appelez-nous	-
40	5304476372		Scroll, Blower Housing, Rear		Appelez-nous	-
41	5304483055		Motor, Fan		Appelez-nous	-
42	5304538708		Fan Blade, Axial Flow   (Replaces: 5304472356)				$ 50.16
43	5304495634		Shroud, Condenser/fan		Appelez-nous	-
44	5304487567		Retainer, Shutter, Cabinet Sides		Appelez-nous	-
45	5304486012		Cabinet, Wrapper/sleeve		Appelez-nous	-
46	5304476333		Rail, Shutter Track, Top Angle		Appelez-nous	-
47	5304472546		Screw Kit, Top Rail Mount		Appelez-nous	-
48	5304476266		Hardware, Mounting, Screws/locks		Appelez-nous	-
49	5304472366		Seal Kit, Foam, Sash & Rails		Appelez-nous	-
50	5304476334		Window Filler Kit, Slider Panel		Appelez-nous	-
51	5304472360		Bracket, Sill Angle		Appelez-nous	-
52	5304482508		Bracket, Mounting, Right Window		Appelez-nous	-
53	5304482509		Bracket, Mounting, Left Window		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
