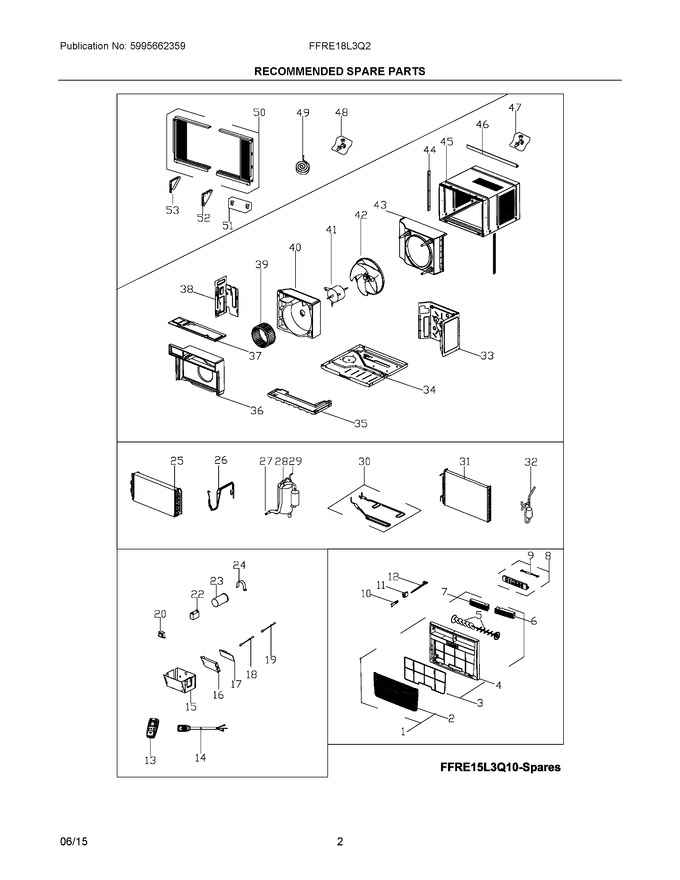

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304476955		Front Assembly, Complete Panel		Appelez-nous	-
2	5304476956		Panel, Front Grille, Tilt-out		Appelez-nous	-
3	5304476957		Filter, Air		Appelez-nous	-
4	5304496313		Panel, Frame, Front		Appelez-nous	-
5	5304476959		Louver, Vertical		Appelez-nous	-
6	5304476960		Louver, Horizontal, Right		Appelez-nous	-
7	5304476961		Louver, Horizontal, Left		Appelez-nous	-
8	5304495622		Pc Board, Display/input		Appelez-nous	-
9	5304495009		Wire, Connector, Pc Boards		Appelez-nous	-
10	5304495010		Handle, Vent Control		Appelez-nous	-
11	5304529409		Link, Lever/vent Door, Detente   (Replaces: 5304476359)		Appelez-nous	-
12	5304476950		Door, Vent Control, With Lever		Appelez-nous	-
13	5304534748		Remote Control, Transmitter   (Replaces: 5304487535)		Appelez-nous	-
14	5304516354		Power Cord, Electric, Lcdi   (Replaces: 5304500885)		Appelez-nous	-
15	5304495623		Control Box		Appelez-nous	-
16	5304495029		Holder, Mounting Plate, Control		Appelez-nous	-
17	5304495030		Pc Board, Main, Control/power		Appelez-nous	-
18	5304504724		Sensor, Ambient Temp, Thermistor   (Replaces: 5304487548)				$ 19.85
19	5304512375		Sensor, Temperature, Evaporator   (Replaces: 5304471383)				$ 33.16
20	5304535831		Transformer   (Replaces: 5304471063)		Appelez-nous	-
22	5304521130		Capacitor, Fan Motor   (Replaces: 5304482883)		Appelez-nous	-
23	5304499940		Capacitor, Compressor		Appelez-nous	-
24	5304500876		Strap, Capacitor Clamp		Appelez-nous	-
25	5304500890		Evaporator, +capillary Tube		Appelez-nous	-
26	5304500891		Tube, Capillary		Appelez-nous	-
27	5304495654		Tube, Suction		Appelez-nous	-
28	5304499939		Compressor, With Overload		Appelez-nous	-
29	5304500892		Tube, Discharge		Appelez-nous	-
30	5304495628		Tube, Condensate Evap, Drain Pan		Appelez-nous	-
31	5304500893		Condenser		Appelez-nous	-
32	5304476367		Filter-drier				$ 45.55
33	5304495630		Bulkhead, Partition, Front/right		Appelez-nous	-
34	5304476368		Base, Unit Chassis		Appelez-nous	-
35	5304472530		Tray, Drip Pan		Appelez-nous	-
36	5304495631		Scroll, Blower Housing, Front		Appelez-nous	-
37	5304495632		Cover, Blower Scroll, Front		Appelez-nous	-
38	5304495633		Bulkhead, Partition, Front/left		Appelez-nous	-
39	5304521140		Blower Wheel, Centrifugal Fan   (Replaces: 5304472407)		Appelez-nous	-
40	5304476372		Scroll, Blower Housing, Rear		Appelez-nous	-
41	5304499941		Motor, Fan		Appelez-nous	-
42	5304538708		Fan Blade, Axial Flow   (Replaces: 5304472356)				$ 50.16
43	5304495634		Shroud, Condenser/fan		Appelez-nous	-
44	5304487567		Retainer, Shutter, Cabinet Sides		Appelez-nous	-
45	5304486012		Cabinet, Wrapper/sleeve		Appelez-nous	-
46	5304476333		Rail, Shutter Track, Top Angle		Appelez-nous	-
47	5304472546		Screw Kit, Top Rail Mount		Appelez-nous	-
48	5304476266		Hardware, Mounting, Screws/locks		Appelez-nous	-
49	5304472366		Seal Kit, Foam, Sash & Rails		Appelez-nous	-
50	5304476334		Window Filler Kit, Slider Panel		Appelez-nous	-
51	5304472360		Bracket, Sill Angle		Appelez-nous	-
52	5304482508		Bracket, Mounting, Right Window		Appelez-nous	-
53	5304482509		Bracket, Mounting, Left Window		Appelez-nous	-
