View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

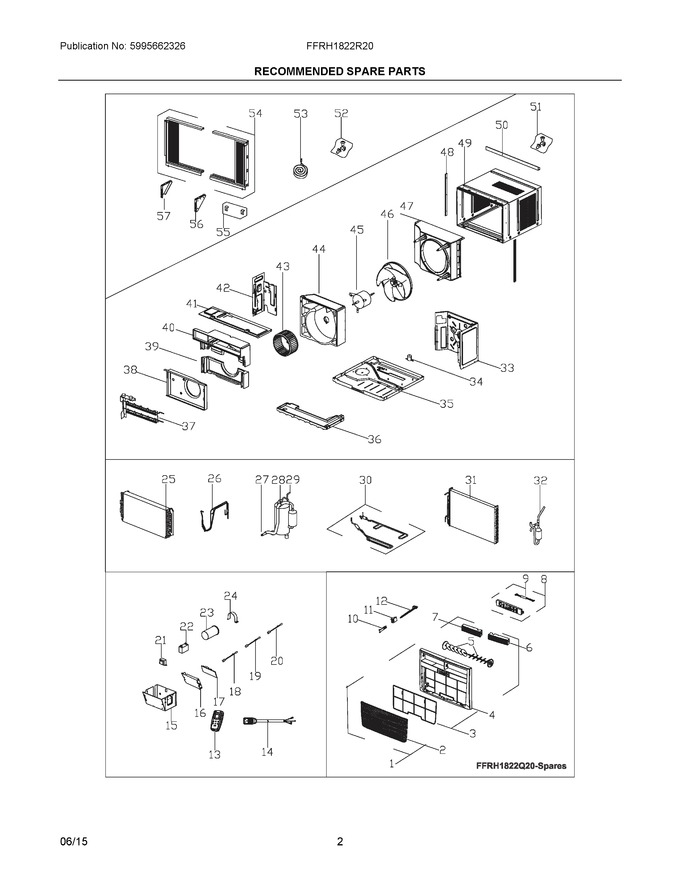

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304483061 | Front Assembly, Complete Panel |
|
- | |||||
| 2 | 5304476943 | Panel, Front Grille, Tilt-out |
|
- | |||||
| 3 | 5304476944 | Filter, Air |
|
- | |||||
| 4 | 5304483062 | Panel, Frame, Front |
|
- | |||||
| 5 | 5304476946 | Louver, Vertical |
|
- | |||||
| 6 | 5304483064 | Louver, Horizontal, Left |
|
- | |||||
| 7 | 5304483063 | Louver, Horizontal, Right |
|
- | |||||
| 8 | 5304496261 | Pc Board, Display/input |
|
- | |||||
| 9 | 5304495009 | Wire, Connector, Pc Boards |
|
- | |||||
| 10 | 5304495010 | Handle, Vent Control |
|
- | |||||
| 11 | 5304529409 | Link, Lever/vent Door, Detente (Replaces: 5304476359) |
|
- | |||||
| 12 | 5304476950 | Door, Vent Control, With Lever |
|
- | |||||
| 13 | 5304482937 | Remote Control, Transmitter |
|
- | |||||
| 14 | 5304500901 | Power Cord, Electric, Lcdi |
|
- | |||||
| 15 | 5304495623 | Control Box |
|
- | |||||
| 16 | 5304495029 | Holder, Mounting Plate, Control |
|
- | |||||
| 17 | 5304496321 | Pc Board, Main, Control/power |
|
- | |||||
| 18 | 5304504724 | Sensor, Ambient Temp, Thermistor (Replaces: 5304487548) |
|
$ 19.85 | |||||
| 19 | 5304512375 | Sensor, Temperature, Evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| 20 | 5304476316 | Sensor, Temperature, Discharge Air, Daht |
|
- | |||||
| 21 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| 22 | 5304521130 | Capacitor, Fan Motor (Replaces: 5304482883) |
|
- | |||||
| 23 | 5304499940 | Capacitor, Compressor |
|
- | |||||
| 24 | 5304500876 | Strap, Capacitor Clamp |
|
- | |||||
| 25 | 5304500890 | Evaporator, +capillary Tube |
|
- | |||||
| 26 | 5304500891 | Tube, Capillary |
|
- | |||||
| 27 | 5304495654 | Tube, Suction |
|
- | |||||
| 28 | 5304499938 | Compressor, With Overload |
|
- | |||||
| 29 | 5304500892 | Tube, Discharge |
|
- | |||||
| 30 | 5304495628 | Tube, Condensate Evap, Drain Pan |
|
- | |||||
| 31 | 5304500893 | Condenser |
|
- | |||||
| 32 | 5304476257 | Dryer-filter |
|
- | |||||
| 33 | 5304495630 | Bulkhead, Partition, Front/right |
|
- | |||||
| 34 | 5304476323 | Valve, Drain |
|
- | |||||
| 35 | 5304476324 | Base, Unit Chassis |
|
- | |||||
| 36 | 5304472530 | Tray, Drip Pan |
|
- | |||||
| 37 | 5304472338 | Heater Assembly, Electric |
|
- | |||||
| 38 | 5304495739 | Shield, Heater Housing |
|
- | |||||
| 39 | 5304495740 | Scroll, Blower Housing, Bottom |
|
- | |||||
| 40 | 5304496322 | Scroll, Blower Housing, Top |
|
- | |||||
| 41 | 5304495632 | Cover, Blower Scroll, Front |
|
- | |||||
| 42 | 5304495633 | Bulkhead, Partition, Front/left |
|
- | |||||
| 43 | 5304472346 | Blower Wheel, Centrifugal Fan |
|
- | |||||
| 44 | 5304483068 | Scroll, Blower Housing, Rear |
|
- | |||||
| 45 | 5304499941 | Motor, Fan |
|
- | |||||
| 46 | 5304538708 | Fan Blade, Axial Flow (Replaces: 5304472356) |
|
$ 50.16 | |||||
| 47 | 5304495634 | Shroud, Condenser/fan |
|
- | |||||
| 48 | 5304487567 | Retainer, Shutter, Cabinet Sides |
|
- | |||||
| 49 | 5304486012 | Cabinet, Wrapper/sleeve |
|
- | |||||
| 50 | 5304476333 | Rail, Shutter Track, Top Angle |
|
- | |||||
| 51 | 5304472546 | Screw Kit, Top Rail Mount |
|
- | |||||
| 52 | 5304476266 | Hardware, Mounting, Screws/locks |
|
- | |||||
| 53 | 5304472366 | Seal Kit, Foam, Sash & Rails |
|
- | |||||
| 54 | 5304476334 | Window Filler Kit, Slider Panel |
|
- | |||||
