SELECT A DIAGRAM

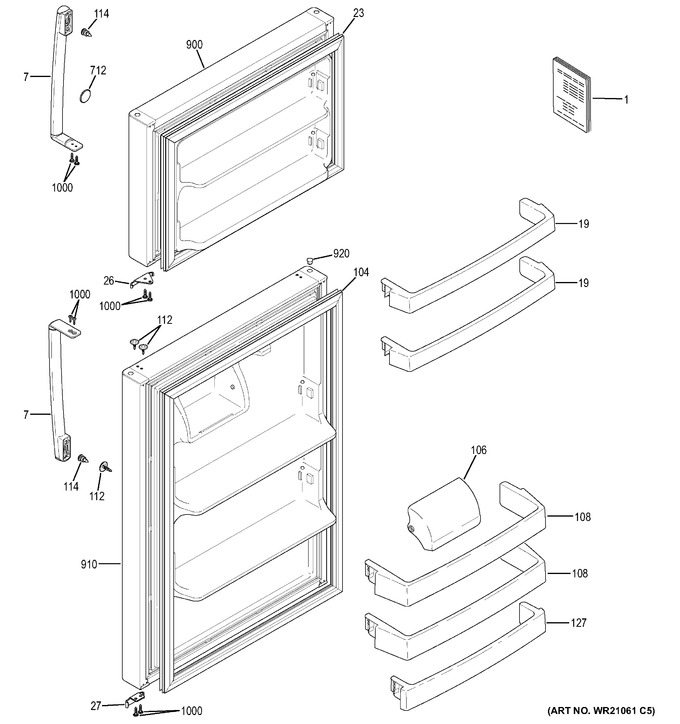

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-46556-2		Pm Attention Installer		Appelez-nous	-
1	31-51910		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60697-3		Pm Quick Use & Care		Appelez-nous	-
7	WR12X21196		Handle Plastic Asm Black		Appelez-nous	-
19	WR71X21149		Shelf Fixed Fz		Appelez-nous	-
23	WR14X21235		Gasket Door Fz		Appelez-nous	-
26	WR02X21191		Stop Door		Appelez-nous	-
27	WR02X21190		Stop Door		Appelez-nous	-
104	WR14X22914		Gasket Door Ff Dg		Appelez-nous	-
106	WR22X21153		Door Dairy		Appelez-nous	-
108	WR17X21154		Shelf Fixed Ff		Appelez-nous	-
112	WR02X21195		Plug Door Rvsbl		Appelez-nous	-
114	WR01X21158		Fastener Door Handle		Appelez-nous	-
127	WR17X22911		Shelf Fixed Bottom Ff		Appelez-nous	-
712	WR02X21156		Badge Asm Ge		Appelez-nous	-
900	WR78X22921		Door Foam Asm Fz Bb		Appelez-nous	-
910	WR78X22920		Door Foam Asm Ff Bb		Appelez-nous	-
920	WR02X11774		Plug Button Thimble		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-
