SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves

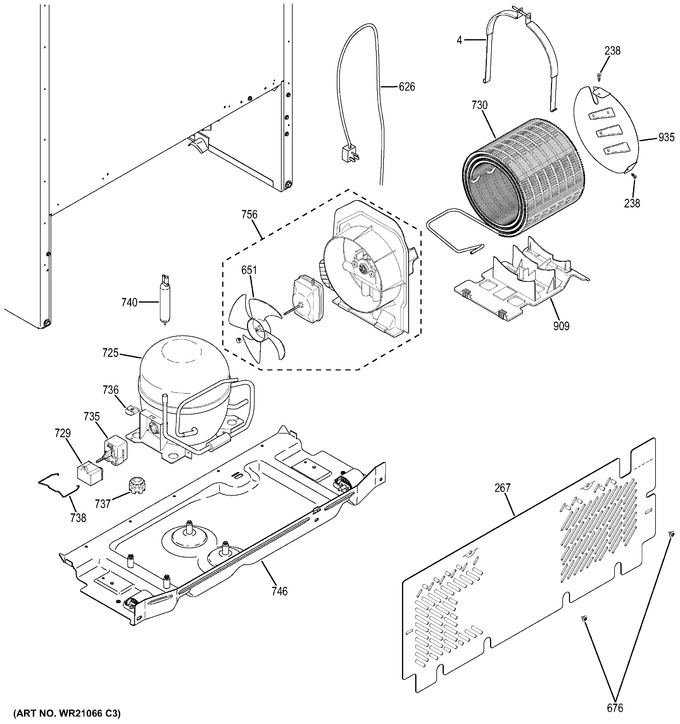

5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	WR01X24372		Strap Cond Asm		Appelez-nous	-
238	WD02X10151		Scr 10-16 Ab 43whex 5/8		Appelez-nous	-
238	WR17X21210		Slide Humidity Veg Pan		Appelez-nous	-
267	WR82X21177		Cover Access		Appelez-nous	-
626	WR55X21182		Harness Mach Asm		Appelez-nous	-
651	WG03F10555		Blade Cond Fan Asm   (Replaces: WR60X10207)			Immediately	$ 17.47
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
725	WR87X24603		Compressor Embraco Em3c5		Appelez-nous	-
729	WR55X23731		Capacitor 12 Uf		Appelez-nous	-
730	WR84X23344		Condenser Formed Asm		Appelez-nous	-
735	WR07X22866		Tsd Combo		Appelez-nous	-
736	WR2X8203		Clip Compressor Mount		Appelez-nous	-
737	WR02X22869		Grommet		Appelez-nous	-
738	WR02X12004		Clip Retainer Mei		Appelez-nous	-
740	WG03A03157		P/s Dryer Kit R134a   (Replaces: WR86X96)			Immediately	$ 153.40
746	WR17X21160		Baseplate Stud Asm		Appelez-nous	-
756	WR17X21162		Fan Housing Asm				$ 115.45
909	WR02X21166		Support Condenser		Appelez-nous	-
935	WR17X21164		Baffle Condenser		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
