SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker

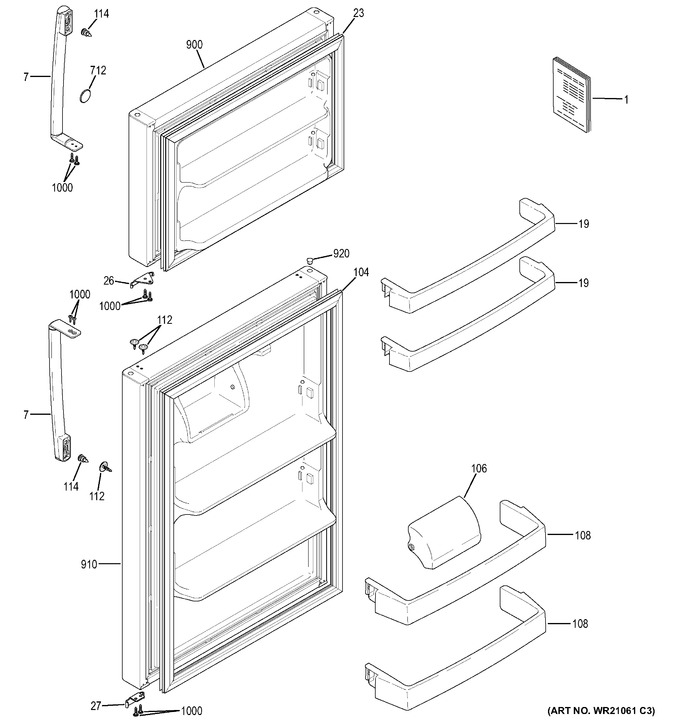

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51911		Pm Mini Manual Wiring		Appelez-nous	-
7	WR12X21157		Handle Plastic Asm White		Appelez-nous	-
19	WR71X21149		Shelf Fixed Fz		Appelez-nous	-
23	WR14X21147		Gasket Door Fz		Appelez-nous	-
26	WR02X21150		Stop Door		Appelez-nous	-
27	WR02X21152		Stop Door		Appelez-nous	-
104	WR14X21148		Gasket Door Ff		Appelez-nous	-
106	WR22X21153		Door Dairy		Appelez-nous	-
108	WR17X21154		Shelf Fixed Ff		Appelez-nous	-
112	WR01X21159		Plug Door Rvsbl		Appelez-nous	-
114	WR01X21158		Fastener Door Handle		Appelez-nous	-
712	WR02X21156		Badge Asm Ge		Appelez-nous	-
900	WR78X21146		Door Foam Asm Fz		Appelez-nous	-
910	WR78X21145		Door Foam Asm Ff		Appelez-nous	-
920	WR2X8233		Plug Btn Wht		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
