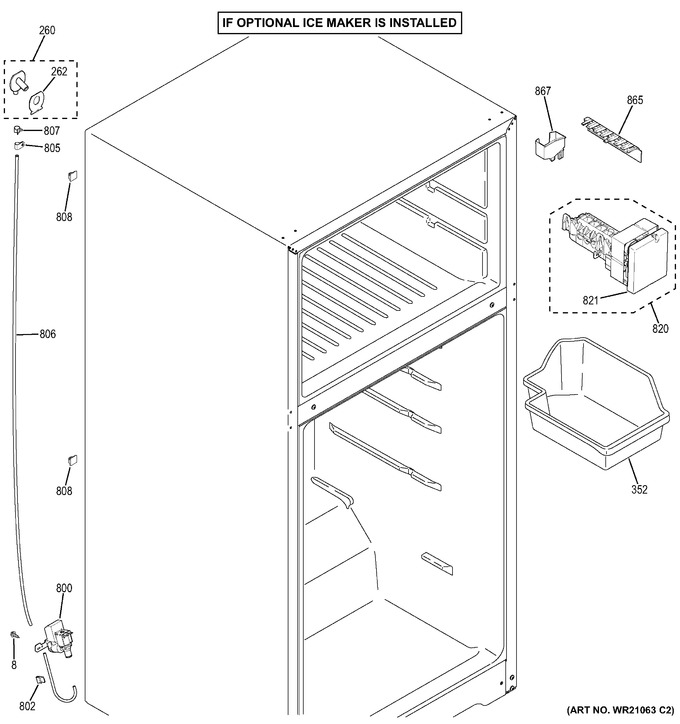

SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Machine Compartment


6 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
260	WR2X9224		Wr2x9161		Appelez-nous	-
262	WR2X9223		Gasket Donut		Appelez-nous	-
352	WR30X21245		Bucket Ice		Appelez-nous	-
800	WR57X21246		Valve And Tube Asm		Appelez-nous	-
802	WR01X10182		Clip U		Appelez-nous	-
805	WR2X3736		Str Relief		Appelez-nous	-
806	WR17X11492		Tube Plastic		Appelez-nous	-
807	WR02X11437		Clamp		Appelez-nous	-
808	WR2X4039		Adhesive Clip		Appelez-nous	-
820	IM6D		Kit Rplcmt Wr30x10093   (Replaces: WR30X10093)			Immediately	$ 297.77
821	WR29X10080		Cover		Appelez-nous	-
865	WG03F03761		Stripper Im   (Replaces: WR29X10083)				$ 58.80
867	WR29X10046		Cup Fill Im		Appelez-nous	-
	WR01F01775		Socket & Term Bk   (Replaces: WG03F01470)				$ 7.51
	WG03F00975		Defrost Timer   (Replaces: WG03F01435)			Immediately	$ 74.46
	WG03L08746		Gasket Door Fz   (Replaces: WG03L06378)				$ 113.65
	WG03F00417		Im Crescent			Immediately	$ 186.65
	WG03F00616		Thermostat Defrost			Immediately	$ 65.25
	WG03L08648		Gasket Door Ff   (Replaces: WG03L06375)			Immediately	$ 120.98
	WG03L06365		Door Foam Asm Ff				$ 509.72
	WG03L06353		Blade Evap Fan Asm				$ 16.22
	WG03F05894		Tsd Combo				$ 82.06
	WG03F07855		Motor Ac/dc Evap Fan   (Replaces: WG03F05834)			Immediately	$ 122.66
	WG03F06661		Control Temp   (Replaces: WG03F05810)			Immediately	$ 97.29
	WG03A04130		Valve And Tube Asm   (Replaces: WG03F04677)			Immediately	$ 73.42
	WG03A02980		Boitier, Controle   (Replaces: WG03F04671)				$ 102.19
	WG03F04669		Heater Def Asm				$ 91.57
	WG03F06661		Control Temp   (Replaces: WG03F04661)			Immediately	$ 97.29
	WG03F02127		Defrost Timer				$ 79.78
	WG03F10250		Blade Evap Fan Asm   (Replaces: WG03F01638)			Immediately	$ 10.01
	WG03F01479		Thermostat Defrost			Immediately	$ 58.71

    View Diagram in Separate Window       Print Part List
