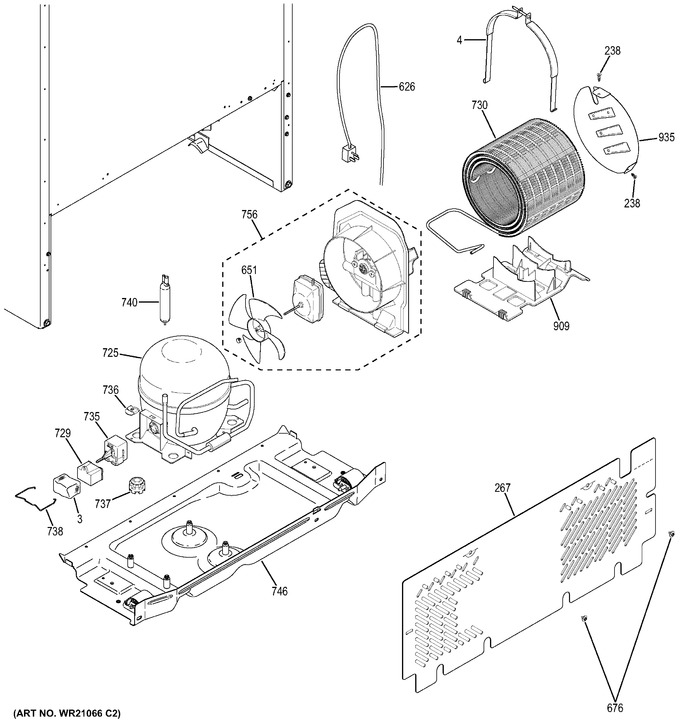

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WR02X20733 | Sleeve Fiber Glass |
|
- | |||||
| 4 | WR01X24372 | Strap Cond Asm |
|
- | |||||
| 238 | WD02X10151 | Scr 10-16 Ab 43whex 5/8 |
|
- | |||||
| 267 | WR82X21177 | Cover Access |
|
- | |||||
| 626 | WR55X22871 | Harness Mach Asm |
|
- | |||||
| 651 | WG03F10555 | Blade Cond Fan Asm (Replaces: WR60X10207) |
|
Immediately | $ 17.47 | ||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 725 | WR87X24603 | Compressor Embraco Em3c5 |
|
- | |||||
| 729 | WR55X20800 | Capacitor |
|
- | |||||
| 730 | WR84X23344 | Condenser Formed Asm |
|
- | |||||
| 735 | WR07X22866 | Tsd Combo |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR02X22869 | Grommet |
|
- | |||||
| 738 | WR02X11999 | Clip Retainer Mei |
|
- | |||||
| 740 | WR86X21265 | Dryer |
|
- | |||||
| 746 | WR17X21160 | Baseplate Stud Asm |
|
- | |||||
| 756 | WR17X21162 | Fan Housing Asm |
|
$ 115.45 | |||||
| 909 | WR02X21166 | Support Condenser |
|
- | |||||
| 935 | WR17X21164 | Baffle Condenser |
|
- |
