SELECT A DIAGRAM

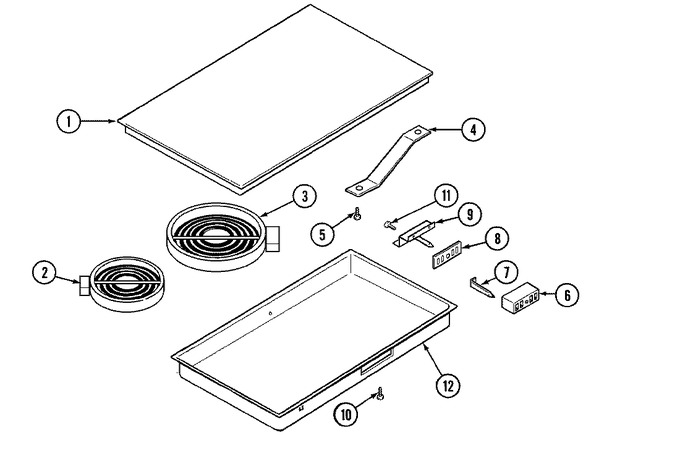

01 - Accessories (glass Cartridge)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002460 | Glass/frame Assy. Halogen-wht) | 11 |
|
- | ||||
| 2 | W10823702 | Element, Halogen (160mm) (Replaces: Y04100067) | 11 |
|
$ 362.43 | ||||
| 3 | W10823698 | Element, Halogen (200mm) (Replaces: 71001404) | 11 |
|
Immediately | $ 195.12 | |||
| 4 | WPY04100059 | Screw (Replaces: Y04100059) | 11 |
|
$ 8.68 | ||||
| 4 | Y04100058 | Spring, Support | 11 |
|
- | ||||
| 5 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 11 |
|
$ 14.16 | ||||
| 6 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
$ 102.01 | ||||
| 7 | Y708572 | Spade, Contact | 11 |
|
Immediately | $ 13.23 | |||
| 8 | 708834 | Insulator, Contact Spade | 11 |
|
$ 15.74 | ||||
| 9 | Y04100060 | Bracket, Retaining | 11 |
|
- | ||||
| 10 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 8.76 | |||
| 11 | WP488234 | Screw (Replaces: 708861) | 11 |
|
$ 7.08 | ||||
| 12 | Y04100064 | Pan, Cartridge | 11 |
|
- | ||||
| NI | 16007532 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
