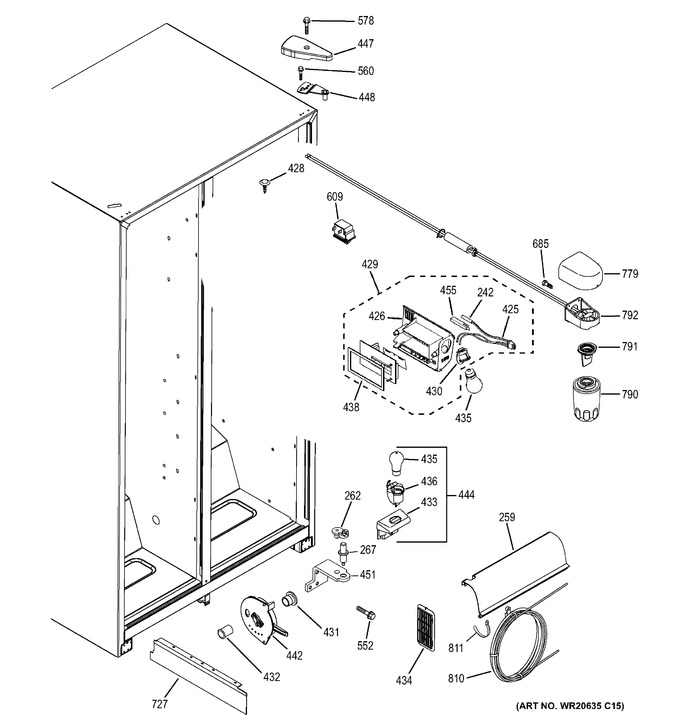

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 242 | WR55X10736 | Sensor Temperature |
|
- | |||||
| 259 | WR17X12486 | Shield Light Lower |
|
- | |||||
| 262 | WR02X11743 | Hinge Cam Riser |
|
- | |||||
| 267 | WR23X10496 | Harness Fz Fan Htr |
|
- | |||||
| 425 | WR60X10215 | Damper & Thermister Asm |
|
- | |||||
| 426 | WR02X12261 | Cover Damper |
|
- | |||||
| 428 | WG03F01629 | Plug Button (Replaces: WR2X7051) |
|
$ 4.78 | |||||
| 429 | WR13X10988 | Damper Cover Asm |
|
- | |||||
| 430 | WR02X13570 | Socket Lamp |
|
- | |||||
| 431 | WR2X9299 | Cap Mullion Duct |
|
- | |||||
| 432 | WR02X10561 | Duct Mullion |
|
- | |||||
| 433 | WR02X12278 | Housing Lamp Socket Int |
|
- | |||||
| 434 | WR17X10262 | Grille Air Return |
|
- | |||||
| 435 | 60A | 60a - 2bulbs |
|
- | |||||
| 436 | WG03F01610 | Socket & Terminal (Replaces: WR02X10591) |
|
$ 12.71 | |||||
| 438 | WR14X10047 | Gasket Damper |
|
- | |||||
| 442 | WR17X23224 | Control Meat Pan Asm |
|
- | |||||
| 444 | WR23X10711 | Housing Light Lwr Asm |
|
- | |||||
| 447 | WR02X11482 | Cover Hng Bk |
|
- | |||||
| 448 | WR13X10711 | Hinge Top & Pin Asm Rh |
|
- | |||||
| 451 | WR13X11006 | Hinge Btm & Pin Asm |
|
- | |||||
| 455 | WR02X12258 | Cover Sensor Ff |
|
- | |||||
| 552 | WR01X10600 | Scr 12-24 Tt Hx .811 S Z |
|
- | |||||
| 560 | WR01X10650 | Scr 12-24 Ca Hx 7/8 S |
|
- | |||||
| 578 | WR01F03225 | Screw (Replaces: WR01X10379) |
|
$ 3.97 | |||||
| 609 | WR23X21443 | Switch Light Ff |
|
- | |||||
| 685 | WR01X10603 | Scr 8-18 Ab Hxw 3/4 S |
|
- | |||||
| 727 | WR17X11409 | Separator Air Hi Side |
|
- | |||||
| 779 | WR02X23223 | Cover Water Filter |
|
- | |||||
| 790 | PMMWF | Water Filter Canister (Replaces: MWFP) |
|
Immediately | $ 81.88 | ||||
| 791 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 19.97 | ||||
| 792 | WR17X20862 | Mwf Manifold & Tubes Asm |
|
- | |||||
| 810 | WR17X11331 | Water Storage Coil |
|
- | |||||
| 811 | WR02X11607 | Wire Tie |
|
- |
