1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Ice Maker & Dispenser


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Machine Compartment

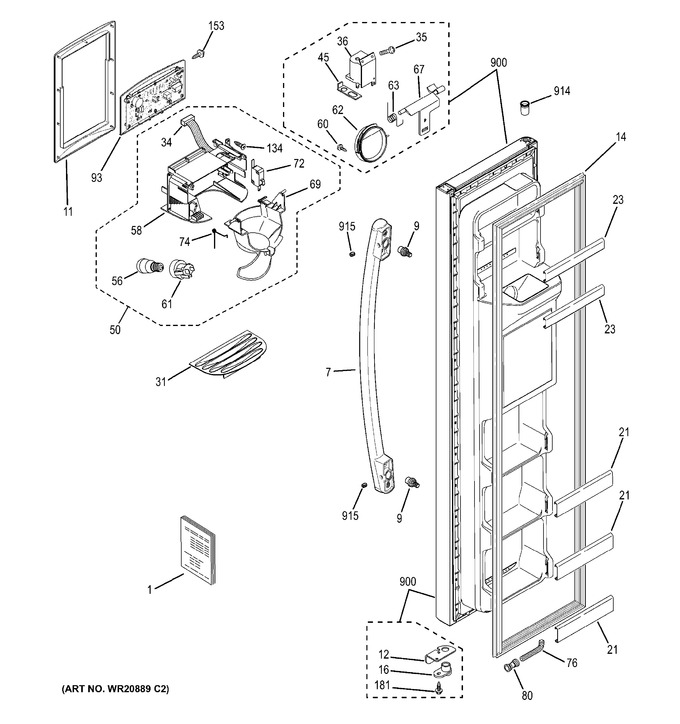

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60514		Pm Guide Owners		Appelez-nous	-
1	31-51790		Pm Mini Manual Wiring		Appelez-nous	-
7	WR12X23239		Arc Handle Asm Cc		Appelez-nous	-
9	WR01X11039		Fastener Handle		Appelez-nous	-
11	WR38X23214		Trim Recess Cc		Appelez-nous	-
12	WR02X11475		Plate Door Stop Ff		Appelez-nous	-
14	WG03L06014		Gasket Door Fz   (Replaces: WR24X10302)				$ 104.70
16	WG03L01097		Cam & Thimble Fz   (Replaces: WR02X11478)				$ 7.20
21	WR17X12069		Front Door Shelf Fz		Appelez-nous	-
23	WR17X12075		Front Door Shelf Fz		Appelez-nous	-
31	WR17X10751		Grill Recess Bisque		Appelez-nous	-
34	WR23X10525		Harness Recess Disp		Appelez-nous	-
35	WR01X10649		Scr 8-10 Pl Pnp 1/2 S		Appelez-nous	-
36	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 88.99
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
50	WR02X21644		Housing Recess Asm Cc		Appelez-nous	-
56	WG03A03944		Light Dispenser   (Replaces: WR02X12208)			Immediately	$ 67.41
58	WG03F00341		Housing Shield Disp   (Replaces: WR17X12152)				$ 18.59
60	WR01X10656		Scr 4-10 Pl Pnp 5/16 S5h		Appelez-nous	-
61	WR2X9561		Lamp Socket		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X11653)				$ 65.21
63	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
67	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 12.71
69	WR17X11269		Funnell Ice Bq Display B		Appelez-nous	-
72	WR23X10783		Switch		Appelez-nous	-
74	WR02X10584		Spring Funnel		Appelez-nous	-
76	WR2X8933		Sleeve Water Line		Appelez-nous	-
80	WR01F02845		Union Connector   (Replaces: WR02X11330)			Immediately	$ 19.06
93	WR55X23240		Combined Hmi Asm Cc 22/2		Appelez-nous	-
134	WR01X10616		Scr 6-10 Pl Flp 1/2 S		Appelez-nous	-
153	WR01X10597		Scr 6-20 B Fhp 3/8 S		Appelez-nous	-
181	WR01X10655		Scr 10-32 F Hxw 3/4 S		Appelez-nous	-
900	WR78X23241		Door Foam Asm Fz Cc 20/2		Appelez-nous	-
914	WR01X10200		Thimble Door Top		Appelez-nous	-
915	WR01X20424		Set Screw		Appelez-nous	-
