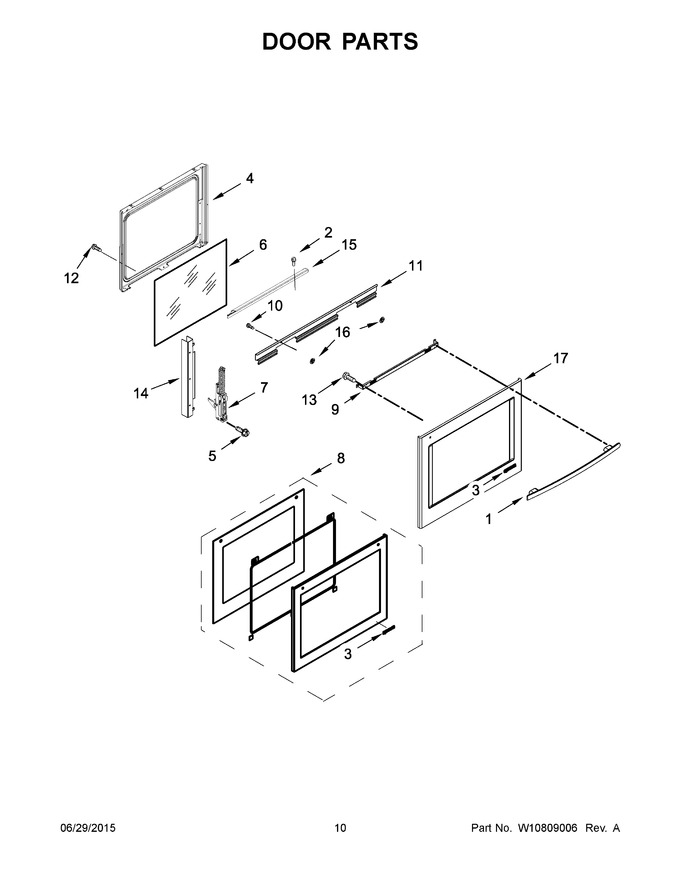

01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Blower Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10550998 | Handle, Door (black) |
|
- | |||||
| 2 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 3 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 85.95 | |||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 384.65 | |||||
| 7 | W10541886 | Hinge, Slow Close |
|
$ 187.29 | |||||
| 8 | WPW10634268 | Panel, Door (stainless) (Replaces: W10634268) |
|
$ 380.75 | |||||
| 9 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 11 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 13 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 14 | W10541883 | Hinge, Support Rail |
|
$ 44.90 | |||||
| 15 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 139.67 | ||||
| 16 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 17 | WPW10541892 | Glass, Outer Door (black) (Replaces: W10541892) |
|
$ 412.72 | |||||
| 15A | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 123.01 | |||||
| 1A | W11195001 | Handle, Door (stainless) (Replaces: W10551013) |
|
$ 229.46 | |||||
| 3A | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 85.95 |
