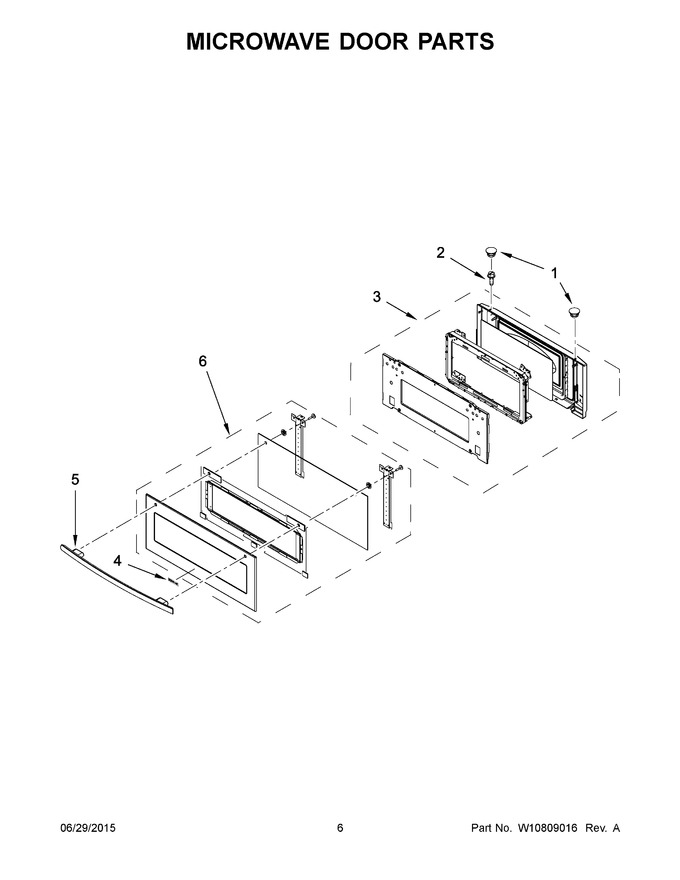

04 - Microwave Door Parts
05 - Cabinet And Stirrer Parts
06 - Internal Microwave Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 12.34 | |||||
| 2 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 3 | W10737653 | Assembly, Inner Door |
|
$ 411.83 | |||||
| 4 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 5 | W10687922 | Assembly, Door Handle (stainless) |
|
$ 245.42 | |||||
| 6 | W10497862 | Assembly, Outer Door (stainless) |
|
- |
