01 - Cover Sheet

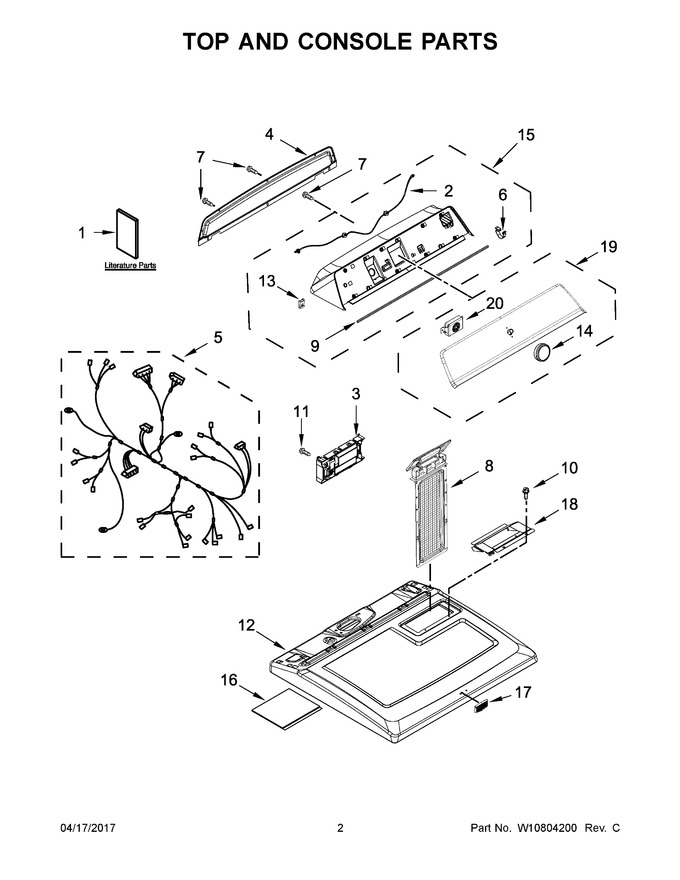

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10680131 | Use And Care Guide |
|
- | |||||
| 2 | W11096548 | Harness, User Interface (Replaces: W10787940) |
|
$ 180.19 | |||||
| 3 | W10831163 | Control, Electronic (Replaces: W10793303) |
|
$ 414.36 | |||||
| 4 | W10775189 | Panel, Rear |
|
$ 390.13 | |||||
| 5 | W10777422 | Harness, Wiring |
|
- | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 8 | W11778254 | Lint Screen (white) (Replaces: W10508973) |
|
Immediately | $ 54.63 | ||||
| 9 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 11 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 12 | W11222514 | Top (white) (Replaces: W10613389) |
|
Immediately | $ 196.23 | ||||
| 13 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 14 | W10853910 | Assembly, Timer Knob (chrome) (Replaces: W10727011) |
|
$ 53.94 | |||||
| 15 | W11026442 | Assembly, Console (white) (Replaces: W10622102) |
|
Immediately | $ 615.11 | ||||
| 16 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 30.95 | |||||
| 17 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 18 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 19 | W11042482 | Assembly, Fascia (Replaces: W10872844) |
|
Immediately | $ 397.25 | ||||
| 20 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 1A | W10680138 | Tech Sheet |
|
- | |||||
| 1B | W10680136 | Installation Instructions |
|
- |
