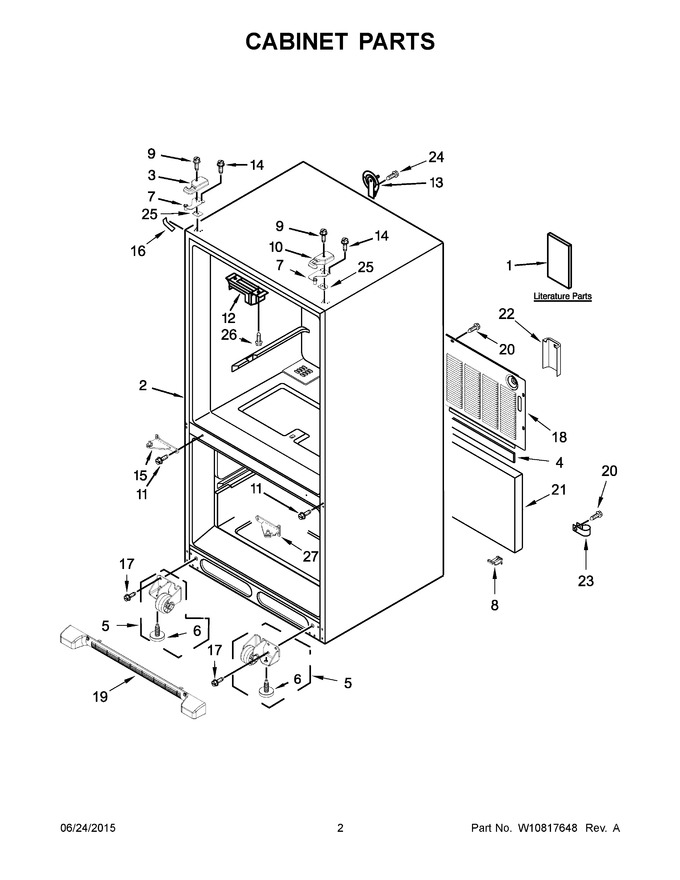

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10621529 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337634 | Cover, Left Hinge (white) (Replaces: W10337634) |
|
Immediately | $ 22.42 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204EDN) |
|
$ 29.09 | |||||
| 8 | W10485986 | Guide, Waterline |
|
Immediately | $ 12.33 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67005958 | Cover, Right Hinge (white) (Replaces: 12962302W) |
|
$ 20.54 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918113 | Hinge, Center Left Hand (white) (Replaces: 13000001WD) |
|
$ 93.26 | |||||
| 16 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 17 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 18 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 196.41 | |||||
| 19 | WPW10534161 | Grille, Toe (white) (Replaces: W10534161) |
|
$ 140.09 | |||||
| 20 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 21 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 22 | W10208592 | Cover, Valve |
|
- | |||||
| 23 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 25 | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 95.81 | |||||
| 26 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.43 | |||||
| 27 | 13000002WD | Hinge, Center Right Hand (white) |
|
$ 153.32 | |||||
| 10A | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 10B | WPW10191117 | Cover, Right Hinge (grey) (Replaces: 12962302APN) |
|
$ 21.95 | |||||
| 15A | W10918164 | Hinge, Center Left Hand (black) (Replaces: 13000007ED) |
|
$ 86.64 | |||||
| 15B | W10917988 | Hinge, Center Left Hand (grey) (Replaces: 13000001AP) |
|
Immediately | $ 91.08 | ||||
| 16A | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 16B | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 19A | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 141.10 | |||||
| 19B | WPW10534160 | Grille, Toe (grey) (Replaces: W10534160) |
|
Immediately | $ 72.60 | ||||
| 1A | W10673870 | Energy Guide |
|
- | |||||
| 1B | W10787416 | Tech Sheet |
|
- | |||||
| 27A | W10918164 | Hinge, Center Right Hand (black) (Replaces: 13000008ED) |
|
$ 86.64 | |||||
| 27B | W10917988 | Hinge, Center Right Hand (grey) (Replaces: 13000002AP) |
|
Immediately | $ 91.08 | ||||
| 3A | W10337647 | Cover, Left Hinge (black) |
|
Immediately | $ 22.22 | ||||
| 3B | WPW10337648 | Cover, Left Hinge (grey) (Replaces: W10337648) |
|
$ 22.02 | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 7A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205EDN) |
|
Immediately | $ 29.02 |
