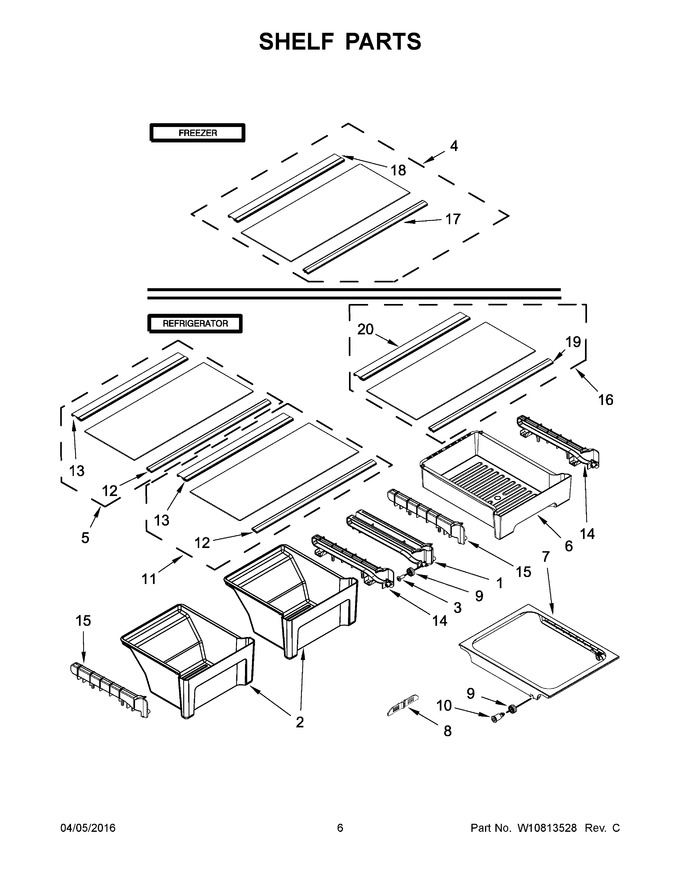

04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11773992 | Track, Rail Center (Replaces: W10694127) |
|
Immediately | $ 32.11 | ||||
| 2 | W10860753 | Assembly, Crisper Pan (Replaces: W10668872) |
|
$ 160.37 | |||||
| 3 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 4 | W11674479 | Assembly, Shelf Fc (Replaces: W10809783) |
|
$ 230.29 | |||||
| 5 | W11674478 | Assembly, Shelf (Replaces: W10809784) |
|
$ 230.49 | |||||
| 6 | W10861806 | Pan, Meat (Replaces: W10714006) |
|
$ 197.34 | |||||
| 7 | W10861519 | Holder, Meat Pan (Replaces: W10628698) |
|
Immediately | $ 92.16 | ||||
| 8 | W11590562 | Control, Humidity (Replaces: W10356844) |
|
$ 23.45 | |||||
| 9 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 10 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 11 | W11674475 | Assembly, Shelf (Replaces: W10809785) |
|
$ 230.43 | |||||
| 12 | W10809774 | Trim, Shelf Front |
|
$ 135.92 | |||||
| 13 | W11167827 | Trim, Shelf Rear (Replaces: W10628686) |
|
$ 63.30 | |||||
| 14 | W11084244 | Rail, Track (right Hand) (Replaces: W10694126) |
|
Immediately | $ 99.24 | ||||
| 15 | W11818646 | Rail, Track (left Hand) (Replaces: W10694125) |
|
Immediately | $ 31.03 | ||||
| 16 | WPW10628707 | Assembly, Shelf (Replaces: W10628707) |
|
Immediately | $ 230.98 | ||||
| 17 | W10809773 | Trim, Shelf Front |
|
- | |||||
| 18 | W11167828 | Trim, Shelf Rear (Replaces: W10628690) |
|
$ 65.52 | |||||
| 19 | W10628680 | Trim, Shelf Front |
|
$ 127.63 | |||||
| 20 | W10628681 | Trim, Shelf Rear |
|
$ 129.09 |
