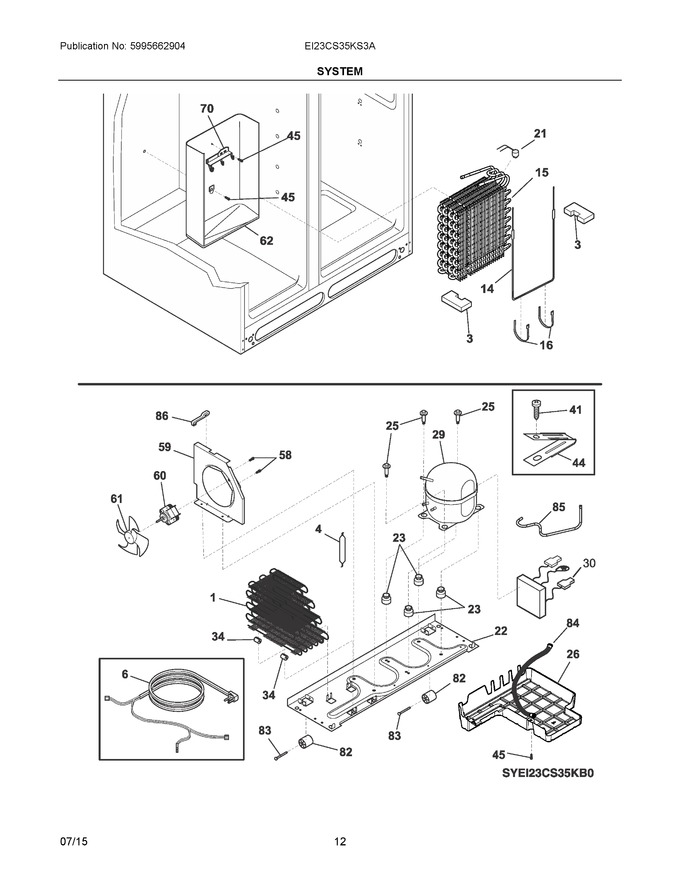

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242106605 | Condenser |
|
$ 218.14 | |||||
| 3 | 218679614 | Block-evap Coil, Styrofoam, (2) |
|
$ 22.05 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047603) |
|
Immediately | $ 35.19 | ||||
| 6 | 241516904 | Cord-service (Replaces: 241516901) |
|
Immediately | $ 42.98 | ||||
| 14 | 242044113 | Heater-defrost |
|
Immediately | $ 115.24 | ||||
| 15 | 5303918284 | Evaporator Kit |
|
$ 534.45 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 66.47 | ||||
| 21 | 5303918214 | Thermostat-defrost, Kit |
|
Immediately | $ 37.13 | ||||
| 22 | 240330012 | Base-compressor |
|
$ 133.73 | |||||
| 23 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 47.25 | |||||
| 25 | 240491503 | Screw-compressor Mtg, 1/4-28 X 1.16, (4) |
|
$ 13.95 | |||||
| 26 | 241920607 | Pan-defrost |
|
- | |||||
| 29 | 5304475104 | Compressor, W/inverter, Hard Wired, And Grommets (Replaces: 242104102) |
|
$ 916.91 | |||||
| 30 | 5304512686 | Invertor (Replaces: 242104302) |
|
Immediately | $ 491.47 | ||||
| 34 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 22.05 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 58 | 240569201 | Screw, 8-18 X 0.500 |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 50.40 | |||||
| 60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 153.95 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 24.43 | ||||
| 62 | 240429405 | Trough-drain |
|
- | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 70.88 | |||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 39.27 | ||||
| 84 | 241830905 | Tube-drain, Lower (Replaces: 241830903) |
|
$ 22.05 | |||||
| 85 | 241856909 | Tube-connector, Suction (Replaces: 241856903) |
|
$ 182.85 | |||||
| 86 | 240409302 | Spacer-cond Tube, Black |
|
$ 74.99 | |||||
| NI | 5303918327 | Heat Exchanger Kit, Suction Line |
|
$ 337.68 | |||||
| NIA | 240346701 | Tape-foam Seal, Shroud |
|
$ 33.08 | |||||
| NIA | 242036801 | Clip-tube, Drain |
|
$ 107.10 | |||||
| NIA | 241519902 | Harness-wiring |
|
$ 83.84 | |||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| NIB | 240359403 | Screw-fan Shroud, (2) |
|
$ 4.21 | |||||
| NIB | 242199702 | Harness-wiring, Machine Compt |
|
- |
