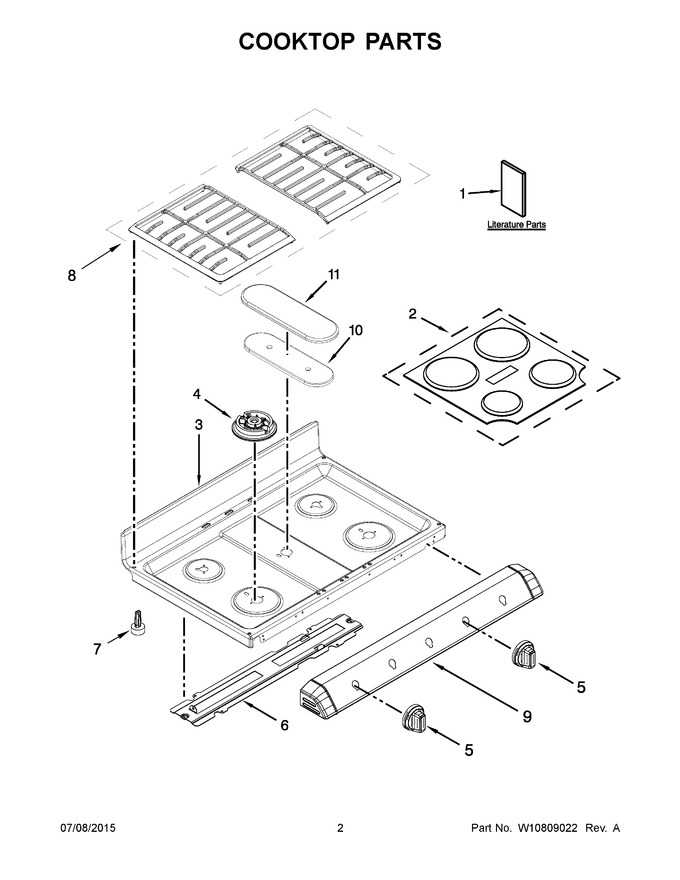

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10748907		Guide, Use & Care		Appelez-nous	-
2	WPW10299233		Kit, Burner Cap (black)   (Replaces: W10299233)				$ 210.99
3	W10336330		Cooktop (black)   (Replaces: W10260169)				$ 420.07
4	WPW10406878		Head, Burner (17.5k) (lf)   (Replaces: W10406878)				$ 107.48
5	W10696522		Knob, Control (stainless)				$ 143.27
6	W10518258		Bracket, Cooktop Support		Appelez-nous	-
7	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
8	WPW10338214		Kit, Grate (black)   (Replaces: W10338214)				$ 345.92
9	W11236290		Panel, Manifold (stainless)   (Replaces: W10696087)		Appelez-nous	-
10	WPW10333445		Base, Burner (fish Burner Only)   (Replaces: W10333445)				$ 110.05
11	WPW10171140		Kit, Fish Burner (black)   (Replaces: W10171140)				$ 168.47
1A	W10722849		Instructions, Installation		Appelez-nous	-
1B	W10647745		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
4A	WPW10406243		Head, Burner (6k) (lr & Rr)   (Replaces: W10406243)			Immediately	$ 39.08
4B	WPW10406797		Head, Burner (12k) (rf)   (Replaces: W10406797)				$ 92.91
4C	WPW10336094		Head, Burner (center)   (Replaces: W10336094)				$ 227.81
NI	W10745669		Harness, Main		Appelez-nous	-
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 231.69
NI	W11172531		Harness, Sensor & Locks   (Replaces: W10745683)				$ 119.20
NI	W10408058		Harness, Spark				$ 77.20
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
