Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left))   (Replaces: W10782761) Special Order $ 92.84

2 W10776098 Cover, Backguard Special Order $ 135.81

3 WPW10318550 Console (stainless)   (Replaces: W10318550) Special Order $ 273.23

4 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 14.72

5 WPW10692921 Control, Electronic   (Replaces: W10692921) Special Order $ 423.85

6 W10278697 Shield, Vent In-Stock Immediately $ 183.33

7 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.55

8 W10528782 Assembly, Overlay (black) Special Order $ 329.20

9 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 96.60

1A W10319111 Support, Backguard (black (right))   (Replaces: W10782763) Special Order $ 43.80


    View Diagram in Separate Window     Print Icon   Print Part List

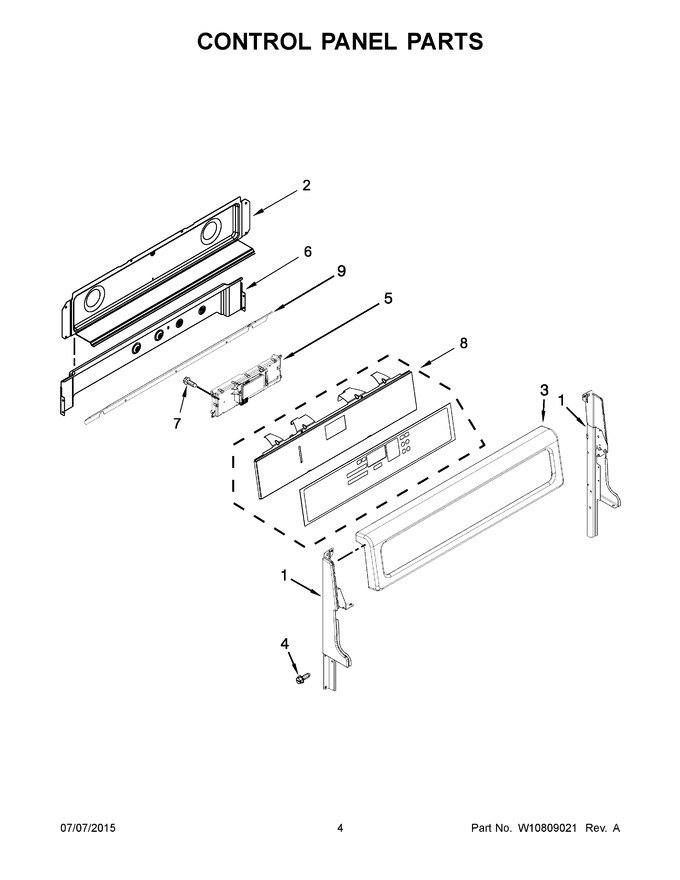

Diagram for WGI925C0BS02
