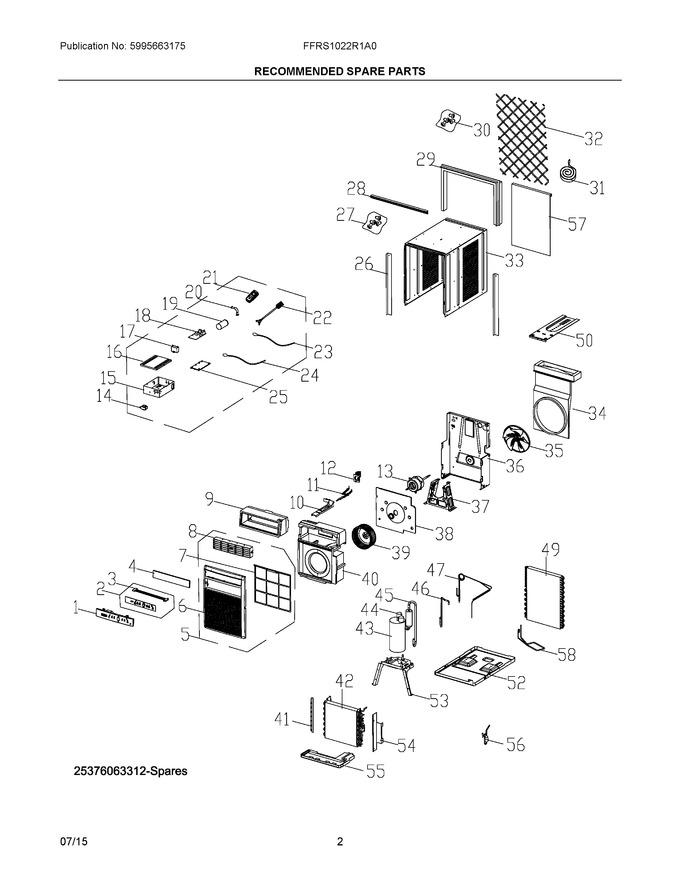

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304496185 | Control Panel, With Overlay |
|
- | |||||
| 2 | 5304536523 | Pc Board, Display/input (Replaces: 5304500946) |
|
- | |||||
| 3 | 5304480400 | Wire, Connector, Pc Boards |
|
- | |||||
| 4 | 5304476461 | Cover, Control Panel |
|
- | |||||
| 5 | 5304476462 | Front Assembly, Complete Panel |
|
- | |||||
| 6 | 5304500947 | Panel, Front Grille, Tilt-out |
|
- | |||||
| 7 | 5304525657 | Filter, Air, Plastic Frame (Replaces: 5304476464) |
|
- | |||||
| 8 | 5304476465 | Louver Assembly, 4-way |
|
- | |||||
| 9 | 5304487580 | Vent, Scroll Adapter, Top/front |
|
- | |||||
| 10 | 5304476466 | Support, Vent Door |
|
- | |||||
| 11 | 5304476467 | Lever, Vent Opener |
|
- | |||||
| 12 | 5304471356 | Door, Air Vent Cover |
|
- | |||||
| 13 | 5304499957 | Motor, Fan |
|
- | |||||
| 14 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| 15 | 5304500948 | Control Box |
|
- | |||||
| 16 | 5304500949 | Cover, Control Box |
|
- | |||||
| 17 | 5304483052 | Capacitor, Fan Motor |
|
- | |||||
| 18 | 5304537436 | Pc Board, Control, Main (Replaces: 5304495510) |
|
- | |||||
| 19 | 5304471387 | Capacitor, Compressor |
|
- | |||||
| 20 | 5304471070 | Strap, Capacitor Clamp |
|
- | |||||
| 21 | 5304476904 | Remote Control, Transmitter |
|
$ 104.94 | |||||
| 22 | 5304500965 | Power Cord, Electric, Lcdi |
|
- | |||||
| 23 | 5304499959 | Thermistor, Temp Sensor, Indoor |
|
- | |||||
| 24 | 5304500951 | Thermistor, Evaporator, Sensor |
|
- | |||||
| 25 | 5304495029 | Holder, Mounting Plate, Control |
|
- | |||||
| 26 | 5304476474 | Channel, Side Mount, Slide |
|
- | |||||
| 27 | 5304521206 | Screw Kit, Top Rail Mount (Replaces: 5304471644) |
|
- | |||||
| 28 | 5304476475 | Rail, Shutter Track, Top Channel |
|
- | |||||
| 29 | 5304495780 | Frame, Window Panel, Seal |
|
- | |||||
| 30 | 5304471645 | Hardware Kit, Installation |
|
- | |||||
| 31 | 5304471646 | Seal Kit, Window, Foam Strips |
|
$ 39.53 | |||||
| 32 | 5304476477 | Grille, Rear |
|
- | |||||
| 33 | 5304476503 | Cabinet, Wrapper/sleeve |
|
- | |||||
| 34 | 5304500952 | Shroud, Fan Housing, Condenser |
|
- | |||||
| 35 | 5304471366 | Fan Blade, Propeller |
|
$ 75.19 | |||||
| 36 | 5304487591 | Bulkhead, Partition, Front |
|
- | |||||
| 37 | 5304500953 | Support, Fan Motor Mount |
|
- | |||||
| 38 | 5304487590 | Panel, Scroll, Rear |
|
- | |||||
| 39 | 5304499958 | Blower Wheel, Centrifugal |
|
- | |||||
| 40 | 5304487592 | Scroll, Blower Housing |
|
- | |||||
| 41 | 5304500966 | Bracket, Evaporator, Left |
|
- | |||||
| 42 | 5304487593 | Evaporator, With, Capillary Tube |
|
- | |||||
| 43 | 5304499955 | Compressor, With Overload |
|
- | |||||
| 44 | 5304500967 | Overload Protector, Compressor |
|
- | |||||
| 45 | 5304500968 | Tube, Suction |
|
- | |||||
| 46 | 5304496188 | Tube, Discharge |
|
- | |||||
| 47 | 5304500969 | Tube, Capillary |
|
- | |||||
| 49 | 5304500959 | Condenser |
|
- | |||||
| 50 | 5304476494 | Platform, Unit Support |
|
- | |||||
| 52 | 5304500960 | Base, Unit Chassis |
|
- | |||||
| 53 | 5304500961 | Base, Compressor |
|
- | |||||
| 54 | 5304500970 | Bracket, Evaporator, Right |
|
- | |||||
| 55 | 5304471379 | Tray, Drain Pan |
|
- | |||||
| 56 | 5304476367 | Filter-drier |
|
$ 45.55 | |||||
| 57 | 5304491890 | Panel, Window, Plastic |
|
- | |||||
| 58 | 5304500962 | Tube, Condensate Evap, Drain Pan |
|
- |
