SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Controls And Water Inlet Parts

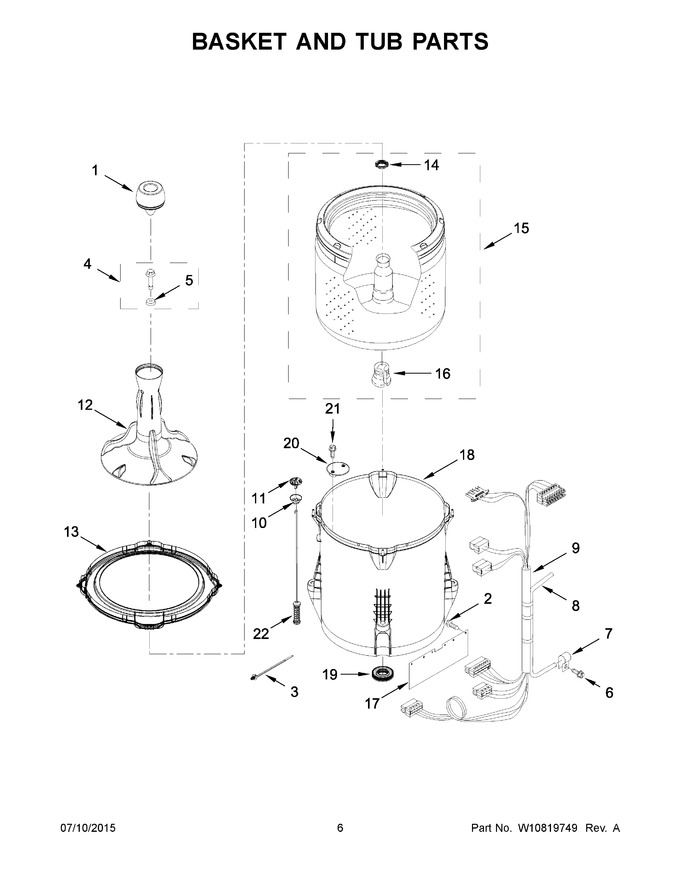

04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11024702		Dispenser, Fabric Softener   (Replaces: W10680192)				$ 80.79
2	W10429200		Retainer, Push-in		Appelez-nous	-
3	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
4	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 5.24
5	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
6	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
7	W10005430		Clamp, Cable			Immediately	$ 9.53
8	WP353244		Hose, Pressure Switch   (Replaces: W10297441)			Immediately	$ 59.93
9	W10746347		Harness, Lower		Appelez-nous	-
10	W10256551		Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls)		Appelez-nous	-
11	W10583768		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
12	W10908289		Agitator   (Replaces: W10680208)			Immediately	$ 97.52
13	WPW10215107		Ring, Tub   (Replaces: W10215107)			Immediately	$ 154.15
14	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 11.56
15	W10349185		Basket Assembly   (Replaces: W10358261)				$ 389.34
16	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 27.49
17	W10339098		Shield, Splash				$ 25.85
18	W10371566		Tub (includes Tub Seal)   (Replaces: W10238320)				$ 356.34
19	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
20	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
21	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
22	W10780048		Damper Assembly, Tub Suspension (set Of 4-includes Ball & Bushing)   (Replaces: W10748952)			Immediately	$ 88.83

    View Diagram in Separate Window       Print Part List
