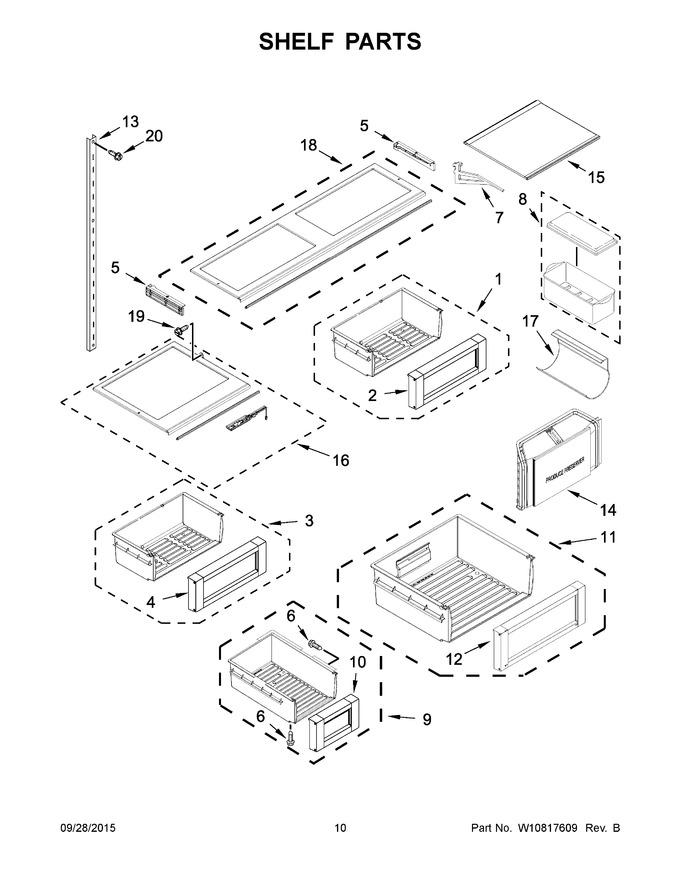

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10529501 | Assembly, Crisper Pan |
|
$ 460.58 | |||||
| 2 | W10529479 | Assembly, Crisper Pan Front |
|
$ 384.55 | |||||
| 3 | W10529506 | Assembly, Deli Pan |
|
$ 342.31 | |||||
| 4 | W10529487 | Assembly, Deli Pan Front |
|
- | |||||
| 5 | W10569842 | Support, Crisper Cover Left Hand (grey) |
|
- | |||||
| 6 | WP488787 | Screw (Replaces: 488886) |
|
$ 11.26 | |||||
| 7 | W11690161 | Sidearm, Shelf (Replaces: W10605575) |
|
Immediately | $ 51.64 | ||||
| 8 | WP2221071A | Assembly, Egg Bin (Replaces: 2221071) |
|
$ 25.79 | |||||
| 9 | W10626679 | Assembly, Ice Pan |
|
$ 378.87 | |||||
| 10 | W10626676 | Assembly, Ice Pan Front |
|
- | |||||
| 11 | W10626681 | Assembly, Freezer Pan |
|
$ 382.08 | |||||
| 12 | W10626678 | Assembly, Front Pan |
|
$ 382.39 | |||||
| 13 | W10743255 | Ladder, Shelf Left Hand (black) |
|
- | |||||
| 14 | W10593207 | Assembly, Produce Preserver |
|
- | |||||
| 15 | WPW10198701 | Assembly, Shelf (Replaces: W10198701) |
|
$ 244.06 | |||||
| 16 | W10559654 | Cover, Deli Bin (left Hand) |
|
$ 340.43 | |||||
| 17 | W10701859 | Rack, Wine |
|
$ 21.53 | |||||
| 18 | WPW10569917 | Cover, Crisper (Replaces: W10569917) |
|
$ 297.80 | |||||
| 19 | W10759522 | Screw (stainless) (Replaces: 488568) |
|
$ 8.24 | |||||
| 20 | W10678207 | Screw (black) |
|
$ 16.43 | |||||
| 13A | W10743254 | Ladder, Shelf Right Hand (black) |
|
- | |||||
| 13B | W10743230 | Ladder, Shelf Center (black) |
|
- | |||||
| 16A | W10559655 | Cover, Deli Bin (right Hand) |
|
$ 330.83 | |||||
| 5A | W10569839 | Support, Crisper Cover Right Hand (grey) |
|
- |
