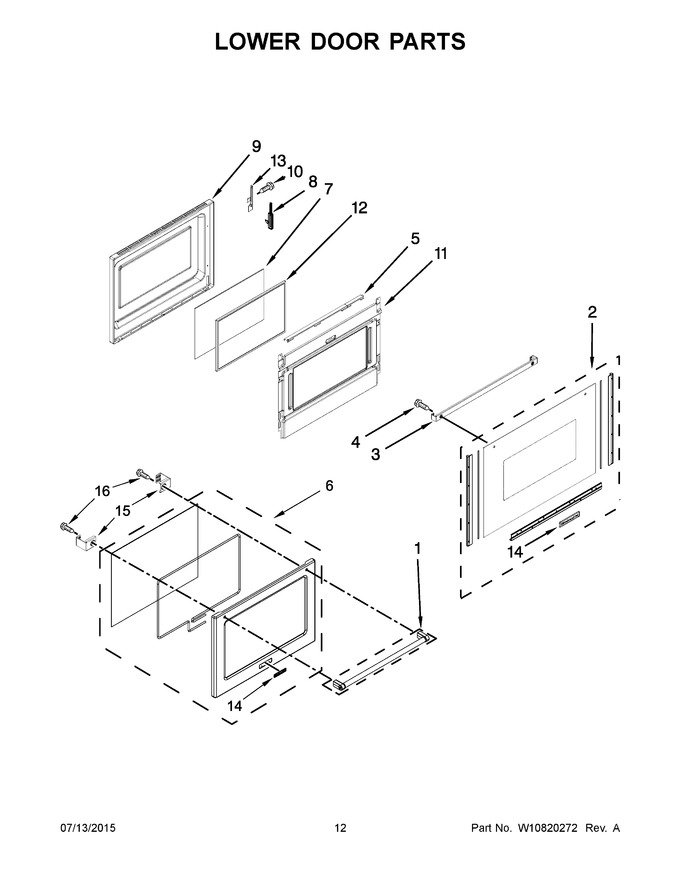

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10674700		Assembly, Handle (black)		Appelez-nous	-
2	W10789062		Assembly, Door (black)   (Replaces: W10654432)		Appelez-nous	-
3	WPW10294695		Bracket, Handle   (Replaces: W10294695)				$ 147.02
4	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
5	WPW10272594		Frame, Glass   (Replaces: W10272594)			Immediately	$ 197.39
6	W11763632		Assembly, Door (stainless)   (Replaces: W10645181)				$ 1,038.54
7	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 141.95
8	WPW10335434		Hinge, Door (left)   (Replaces: W10335434)			Immediately	$ 102.90
9	WPW10292008		Lining, Door   (Replaces: W10292008)				$ 346.35
10	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
11	W10340464		Retainer, Insulation				$ 289.80
12	WPW10321285		Insulation, Door   (Replaces: W10321285)				$ 106.43
13	WPW10272329		Receiver (left)   (Replaces: W10272329)				$ 81.11
14	W10909682		Badge (grey)   (Replaces: W10518672)			Immediately	$ 76.20
15	W10645182		Bracket, Door Handle				$ 41.73
16	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
13A	WPW10272328		Receiver (right)   (Replaces: W10272328)				$ 90.04
1A	W10674699		Assembly, Handle (white)		Appelez-nous	-
1B	W11305108		Assembly, Handle (stainless)   (Replaces: W10674701)				$ 188.40
2A	W10789061		Assembly, Door (white)   (Replaces: W10654431)		Appelez-nous	-
8A	WPW10335433		Hinge, Door (right)   (Replaces: W10335433)				$ 104.99
