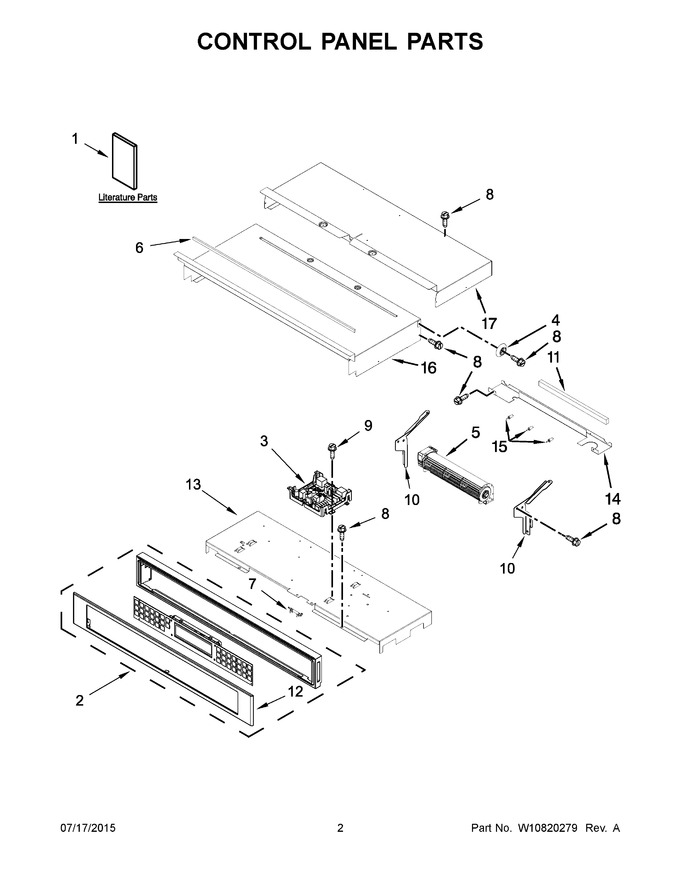

02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10643471		Guide, Use & Care		Appelez-nous	-
2	W11087449		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10588725)				$ 733.94
3	W11179310		Control (with Power Supply)   (Replaces: W10777215)			Immediately	$ 456.49
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 348.59
6	WPW10657548		Gasket, Rubber   (Replaces: W10657548)				$ 89.66
7	WPW10545291		Fuse, Thermal   (Replaces: W10436435)			Immediately	$ 35.50
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10588744		Skin, Control Panel (black)				$ 258.96
13	W10694467		Tray, Electronic		Appelez-nous	-
14	W10655465		Chassis, Back Divider		Appelez-nous	-
15	W10351295		Bumper				$ 22.12
16	W10318192		Chassis, Cover Top Front 30				$ 138.81
17	W10904156		Chassis, Cover Top Back 30   (Replaces: W10694465)		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
12A	W10588746		Skin, Control Panel (white)		Appelez-nous	-
12B	W10588740		Skin, Control Panel (stainless)				$ 214.05
12C	W10776407		Skin, Control Panel (black Steel)				$ 285.61
1A	W10725670		Instructions, Installation		Appelez-nous	-
1B	W10756610		Sheet, Tech		Appelez-nous	-
2A	W10916776		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10588751)				$ 627.59
2B	W11086141		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10588749)			Immediately	$ 799.41
2C	W10697967		Assembly, Control Panel (includes Overlay) (black Steel)				$ 632.19
3A	W10801665		Control (without Power Supply)   (Replaces: W10777216)			Immediately	$ 444.64
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	4452400		Strap, Lead Ground				$ 45.42
NI	4448664		Clamp, Conduit				$ 21.41
NI	W10655464		Bracket, Harness				$ 40.71
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10632452		Harness, Main				$ 282.64
NI	W11157221		Harness, Signal   (Replaces: W10603944)				$ 118.67
NI	W10573327		Harness, Door Latch				$ 67.67
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W11177679		Harness, Tod Jumper   (Replaces: W10766377)				$ 201.19
NI	4450800		Screw, Grounding				$ 13.47
