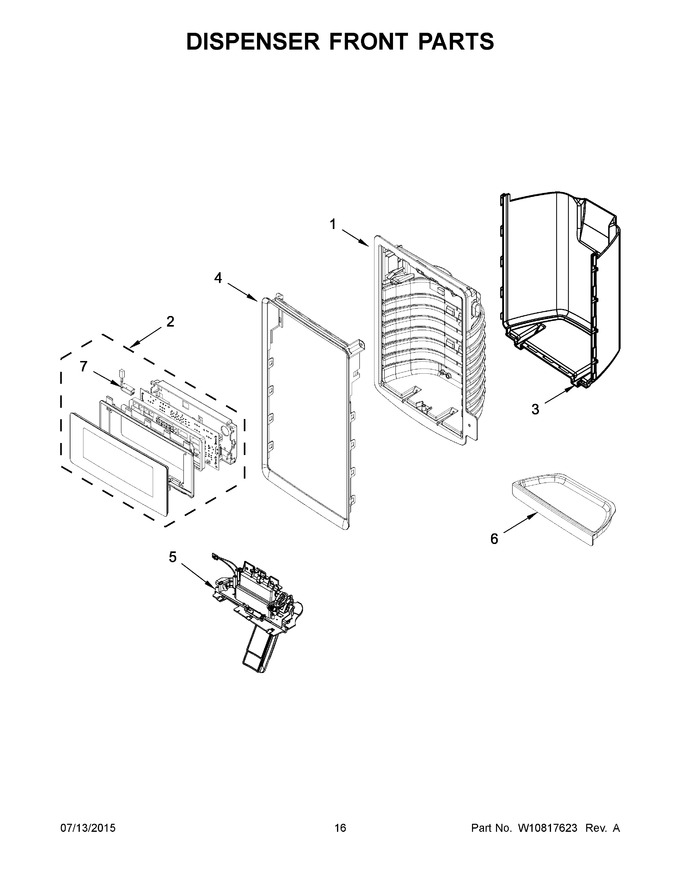

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10865870		Assembly, User Interface (black)   (Replaces: W10590576)				$ 442.48
3	W10488322		Wall, Dispenser False (black)				$ 87.54
4	W10462439		Ring, Trim (black)				$ 38.46
5	WPW10616133		Assembly, Separator (black)   (Replaces: W10616133)				$ 258.46
6	W10606643		Tray, Drip (black)				$ 29.37
7	W11290115		Assembly, Led   (Replaces: W10470750)				$ 84.45

    View Diagram in Separate Window       Print Part List
