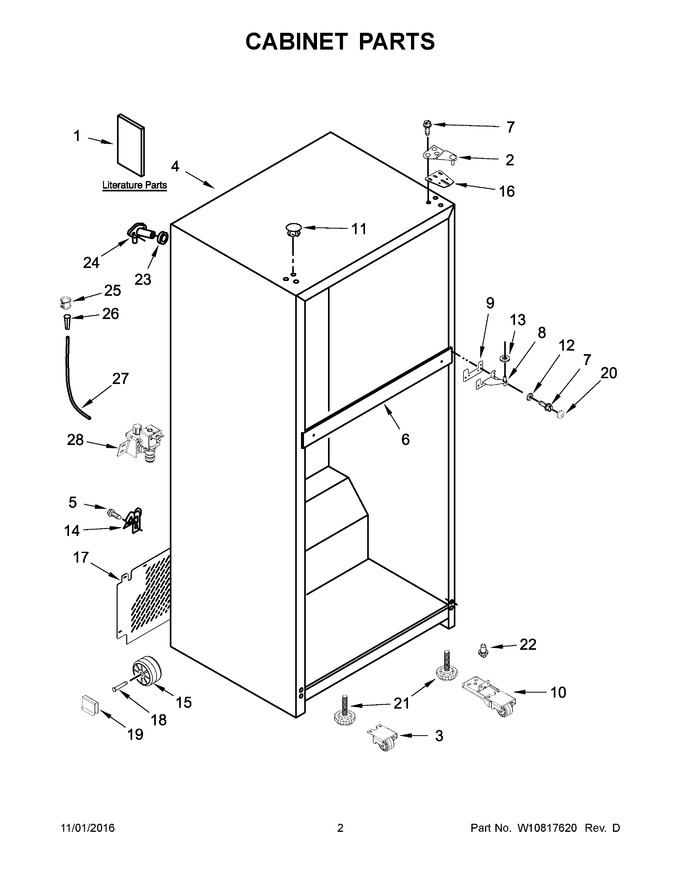

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner & Icemaker Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10872127 | Tech Sheet |
|
- | |||||
| 2 | WP2261963 | Assembly, Top Hinge (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | W11256723 | Assembly, Roller (Replaces: W10842654) |
|
$ 85.45 | |||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 10 | W11096015 | Lower Hinge And Roller Assembly (Replaces: W10843861) |
|
Immediately | $ 85.45 | ||||
| 11 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 17.30 | ||||
| 12 | W10847959 | Dome Cap, Washer (Replaces: W10674773) |
|
$ 10.14 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 15 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 16 | W11169703 | Shim, Top Hinge (white) (Replaces: 2221885) |
|
$ 14.21 | |||||
| 17 | W11476772 | Cover, Unit (Replaces: W10633591) |
|
$ 39.15 | |||||
| 18 | W11594405 | Axle, Roller (Replaces: 981126) |
|
Immediately | $ 17.21 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 20 | W10846529 | Dome Cap (white) (Replaces: W10674771) |
|
Immediately | $ 17.84 | ||||
| 21 | W10854419 | Leveler (Replaces: W10671258) |
|
Immediately | $ 16.22 | ||||
| 22 | W11026307 | Hinge Pin (Replaces: W10638688) |
|
Immediately | $ 69.85 | ||||
| 23 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 24 | WPW10601149 | Fitting, Water Tube (Replaces: W10601149) |
|
Immediately | $ 7.70 | ||||
| 25 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 59.31 | |||||
| 26 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 27 | W10823511 | Tube, Water (Replaces: 2181944) |
|
Immediately | $ 29.17 | ||||
| 28 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 170.90 | |||||
| 11A | WPW10520305 | Hole Plug (black) (Replaces: W10520305) |
|
$ 17.26 | |||||
| 1A | W10885252 | Use And Care Guide |
|
- | |||||
| 1B | W10797468 | Energy Label |
|
- | |||||
| 20A | W10853677 | Dome Cap (black) (Replaces: W10679135) |
|
$ 17.90 |
