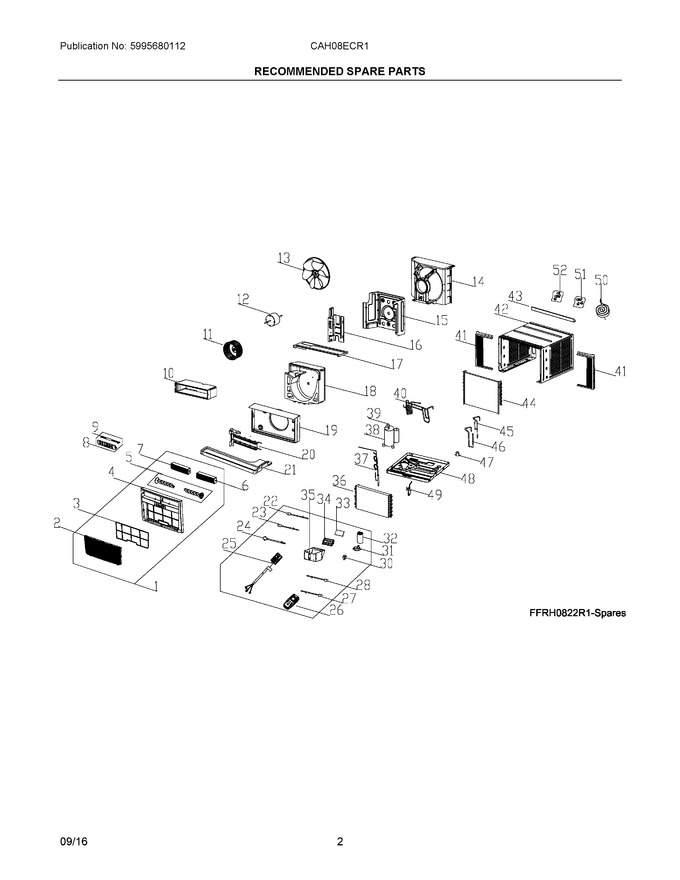

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304483566 | Panel, Front Assy |
|
- | |||||
| 2 | 5304483204 | Panel, Front Grill |
|
- | |||||
| 3 | 5304483205 | Filter, Air |
|
- | |||||
| 4 | 5304483567 | Frame Assembly |
|
- | |||||
| 5 | 5304483568 | Louver, Vertical |
|
- | |||||
| 6 | 5304483569 | Louver, Horizontal, Right |
|
- | |||||
| 7 | 5304483570 | Louver, Horizontal, Left |
|
- | |||||
| 8 | 5304496261 | Pc Board, Display/input |
|
- | |||||
| 9 | 5304495009 | Wire, Connector, Pc Boards |
|
- | |||||
| 10 | 5304501888 | Cover, Scroll, Top |
|
- | |||||
| 11 | 5304471312 | Blower Wheel, Centrifugal Fan |
|
- | |||||
| 12 | 5304529377 | Motor, Fan (Replaces: 5304501889) |
|
- | |||||
| 13 | 5304507757 | Fan Blade |
|
- | |||||
| 14 | 5304501062 | Bulkhead, Partition, Rear |
|
- | |||||
| 15 | 5304501063 | Bulkhead, Partition, Front |
|
- | |||||
| 16 | 5304501064 | Bulkhead, Partition, Front/left |
|
- | |||||
| 17 | 5304501065 | Cover, Blower Scroll, Front |
|
- | |||||
| 18 | 5304501890 | Scroll, Blower Housing, Rear |
|
- | |||||
| 19 | 5304501067 | Scroll, Blower Housing, Front |
|
- | |||||
| 20 | 5304477339 | Heater, Electric |
|
- | |||||
| 21 | 5304501068 | Tray, Drip Pan |
|
- | |||||
| 22 | 5304476316 | Sensor, Temperature, Discharge Air, Daht |
|
- | |||||
| 23 | 5304512374 | Thermistor, Temp Sensor, Indoor (Replaces: 5304491883) |
|
- | |||||
| 24 | 5304512375 | Sensor, Temperature, Evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| 25 | 5304509294 | Power Cord, Electric, Lcdi (Replaces: 5304501891) |
|
- | |||||
| 26 | 5304483560 | Remote Control, Transmitter |
|
- | |||||
| 27 | 5304483216 | Sensor, Temperature |
|
- | |||||
| 28 | 5304490066 | Sensor, Temperature, Condenser |
|
- | |||||
| 30 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| 31 | 5304501069 | Clamp, Capacitor |
|
- | |||||
| 32 | 5304471294 | Capacitor |
|
- | |||||
| 33 | 5304496429 | Pc Board, Main, Control/power |
|
- | |||||
| 34 | 5304495029 | Holder, Mounting Plate, Control |
|
- | |||||
| 35 | 5304501070 | Control Box |
|
- | |||||
| 36 | 5304501892 | Evaporator, +capillary Tube |
|
- | |||||
| 37 | 5304501893 | Tube, Capillary |
|
- | |||||
| 38 | 5304493827 | Compressor, With Overload |
|
- | |||||
| 39 | 5304495930 | Overload Protector, Compressor |
|
- | |||||
| 40 | 5304501954 | Valve, 4-way |
|
- | |||||
| 41 | 5304476393 | Window Filler Kit, Slider Panels, Accordion |
|
- | |||||
| 42 | 5304487606 | Cabinet, Wrapper/sleeve |
|
- | |||||
| 43 | 5304476391 | Rail, Shutter, Top Channel |
|
- | |||||
| 44 | 5304501895 | Condenser |
|
- | |||||
| 45 | 5304496430 | Tube, Discharge |
|
- | |||||
| 46 | 5304496427 | Tube, Suction |
|
- | |||||
| 47 | 5304476323 | Valve, Drain |
|
- | |||||
| 48 | 5304501896 | Base, Unit Chassis |
|
- | |||||
| 49 | 5304476367 | Filter-drier |
|
$ 45.55 | |||||
| 50 | 5304471258 | Seal Kit, Window, Foam Strips |
|
- | |||||
| 51 | 5304491884 | Hardware Kit, Installation |
|
- | |||||
| 52 | 5304471256 | Screw Kit, Top Rail Mount |
|
- |
