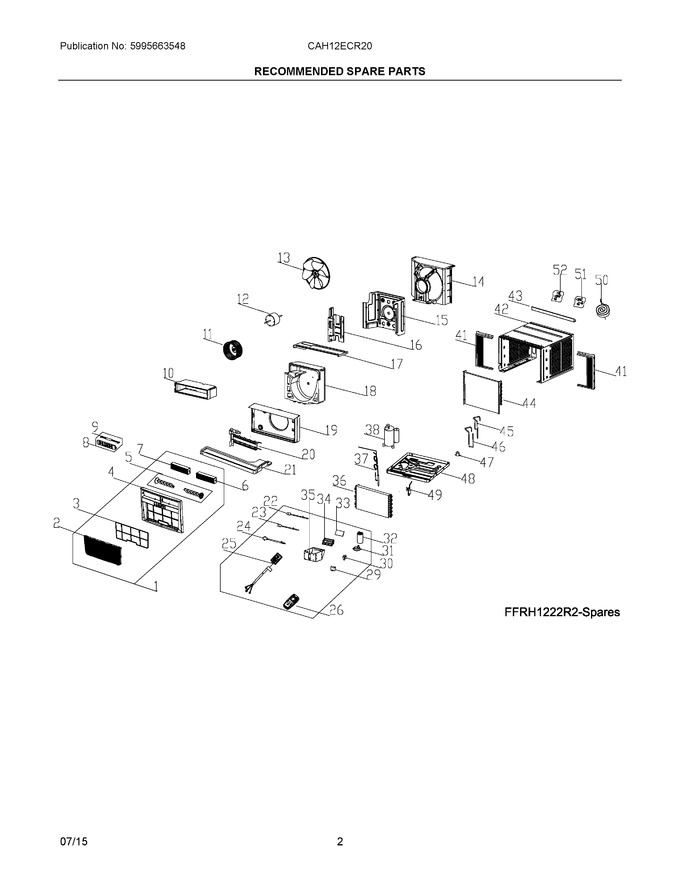

SELECT A DIAGRAM

01 - Cover Sheet


02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483566		Panel, Front Assy		Appelez-nous	-
2	5304483204		Panel, Front Grill		Appelez-nous	-
3	5304483205		Filter, Air		Appelez-nous	-
4	5304483567		Frame Assembly		Appelez-nous	-
5	5304483568		Louver, Vertical		Appelez-nous	-
6	5304483569		Louver, Horizontal (right)		Appelez-nous	-
7	5304483570		Louver, Horizontal (left)		Appelez-nous	-
8	5304496261		Pc Board, Display/input		Appelez-nous	-
9	5304495009		Wire, Connector, Pc Boards		Appelez-nous	-
10	5304502002		Cover, Scroll, Top		Appelez-nous	-
11	5304476623		Blower Wheel, Centrifugal Fan		Appelez-nous	-
12	5304499948		Motor, Fan		Appelez-nous	-
13	5304499949		Fan Blade, Propeller		Appelez-nous	-
14	5304501062		Bulkhead, Partition, Rear		Appelez-nous	-
15	5304501063		Bulkhead, Partition, Front		Appelez-nous	-
16	5304501064		Bulkhead, Partition, Front/left		Appelez-nous	-
17	5304501065		Cover, Blower Scroll, Front		Appelez-nous	-
18	5304501066		Scroll, Blower Housing, Rear		Appelez-nous	-
19	5304501067		Scroll, Blower Housing, Front		Appelez-nous	-
20	5304521227		Heater, Electric   (Replaces: 5304476390)		Appelez-nous	-
21	5304501068		Tray, Drip Pan		Appelez-nous	-
22	5304476316		Sensor, Temperature, Discharge Air, Daht		Appelez-nous	-
23	5304512374		Thermistor, Temp Sensor, Indoor   (Replaces: 5304491883)		Appelez-nous	-
24	5304512375		Sensor, Temperature, Evaporator   (Replaces: 5304471383)				$ 33.16
25	5304500875		Power Cord, Electric, Lcdi		Appelez-nous	-
26	5304483560		Remote Control, Transmitter		Appelez-nous	-
29	5304512430		Capacitor, Fan Motor   (Replaces: 5304471077)		Appelez-nous	-
30	5304535831		Transformer   (Replaces: 5304471063)		Appelez-nous	-
31	5304501069		Clamp, Capacitor		Appelez-nous	-
32	5304493239		Capacitor, Compressor		Appelez-nous	-
33	5304496446		Pc Board, Main, Control/power		Appelez-nous	-
34	5304495029		Holder, Mounting Plate, Control		Appelez-nous	-
35	5304501070		Control Box		Appelez-nous	-
36	5304501071		Evaporator, +capillary Tube		Appelez-nous	-
37	5304501072		Tube, Capillary		Appelez-nous	-
38	5304499947		Compressor, W/b-i Overload		Appelez-nous	-
41	5304476393		Window Filler Kit, Slider Panels, Accordion		Appelez-nous	-
42	5304487606		Cabinet, Wrapper/sleeve		Appelez-nous	-
43	5304476391		Rail, Shutter, Top Channel		Appelez-nous	-
44	5304501055		Condenser		Appelez-nous	-
45	5304501073		Tube, Discharge		Appelez-nous	-
46	5304501074		Tube, Suction		Appelez-nous	-
47	5304476323		Valve, Drain		Appelez-nous	-
48	5304501896		Base, Unit Chassis		Appelez-nous	-
49	5304476367		Filter-drier				$ 45.55
50	5304471258		Seal Kit, Window, Foam Strips		Appelez-nous	-
51	5304491884		Hardware Kit, Installation		Appelez-nous	-
52	5304471256		Screw Kit, Top Rail Mount		Appelez-nous	-
