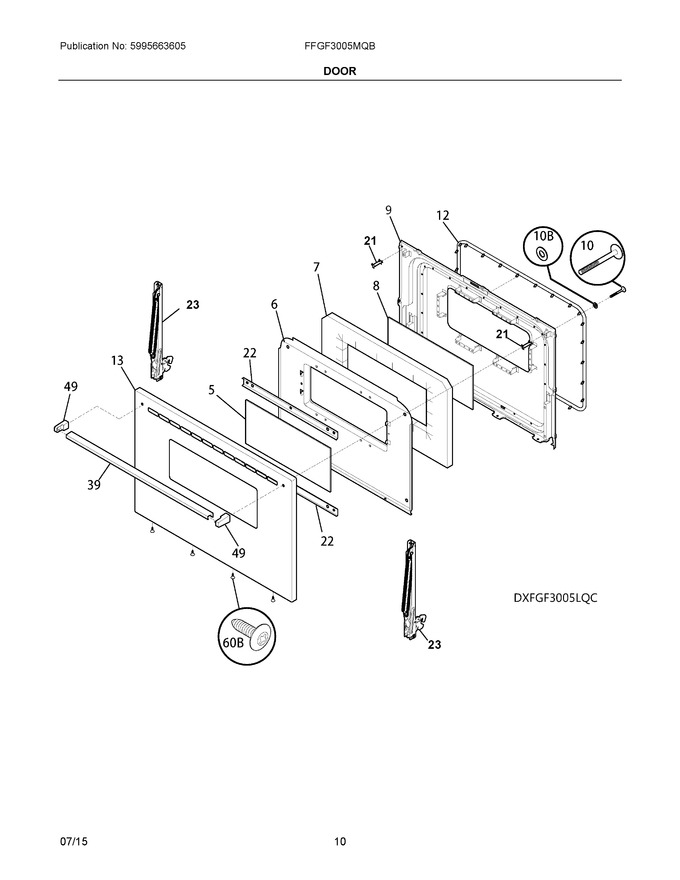

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	316050307		Glass, Oven Door, White, Outer				$ 186.27
6	316222703		Shield, Oven Door, Wool   (Replaces: 316222709)				$ 87.41
7	316236802		Insulation, Oven Door				$ 41.63
8	316088600		Glass, Oven Door, Inner				$ 85.52
9	316230634		Liner, Oven Door				$ 163.47
10	316001009		Screw, Waf Hd Sq, 10-24 X 1.88, (2), Handle Mtg				$ 16.85
12	316239700		Seal, Oven Door			Immediately	$ 169.37
13	316202708		Panel, Oven Door, Bisque		Appelez-nous	-
21	316284101		Spacer, Door Handle, (2)		Appelez-nous	-
22	5303272476		Retainer, Glass, (2), Angle		Appelez-nous	-
23	316575921		Hinge, Oven Door, Orange			Immediately	$ 47.19
39	316020206		Handle, Oven Door, Bisque		Appelez-nous	-
49	316137002		End Cap, Handle, Bisque, (2)		Appelez-nous	-
10B	316008401		Washer, 3/4 Od X 1/4 Id, Steel				$ 12.60
60B	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.95
NI	316245600		Seal, Door, Air Gap				$ 48.67
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
