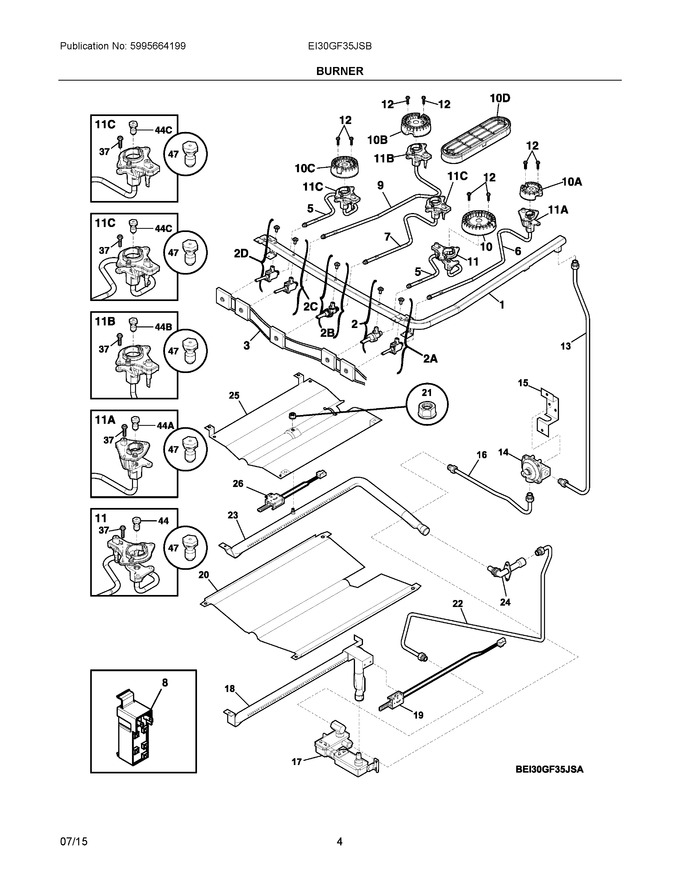

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316505200		Manifold		Appelez-nous	-
2	5303935233		Valve, 17k Burner, W/mtg Screw				$ 64.24
3	316580627		Wiring Harness, W/ignitor Swtch				$ 112.07
5	316509300		Tube, Burner, Rf & Lf, (2)		Appelez-nous	-
6	316509200		Tube, Burner, Rr		Appelez-nous	-
7	316509400		Tube, Burner, Center				$ 117.28
8	5304508269		Module, Spark   (Replaces: 316262404)			Immediately	$ 117.18
9	316526600		Tube, Burner, Lr				$ 107.69
10	316438400		Burner, Sealed, 17k			Immediately	$ 92.69
11	316543200		Ignitor/orifice Assy., Top Burner, 18k, W/holder				$ 15.12
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 16.85
13	316545700		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings				$ 148.58
14	5304521339		Regulator, Pressure   (Replaces: 316091706)			Immediately	$ 117.13
15	316091600		Bracket, Regulator				$ 81.73
16	5304507348		Tube-valve To Rgltr, 3/8   (Replaces: 316431000)			Immediately	$ 52.25
17	316031501		Valve, Safety			Immediately	$ 329.18
18	316404400		Burner, Oven				$ 121.22
19	316489403		Ignitor, Bake Burner			Immediately	$ 158.41
20	5304519024		Baffle, Oven Burner   (Replaces: 316401401)			Immediately	$ 89.32
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.46
22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 55.62
23	316404302		Burner, Broiler				$ 115.76
24	5304516894		Elbow, Mixer   (Replaces: 316409700)				$ 96.90
25	5304497666		Baffle, Broiler				$ 104.49
26	5304506545		Ignitor, Broil Burner   (Replaces: 316489404)			Immediately	$ 127.83
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 13.48
44	316527510		Orifice, Top Burner, 18k		Appelez-nous	-
47	GRLP4		Lp Conversion Kit   (Replaces: 316542416)			Immediately	$ 63.00
10A	316438200		Burner, Sealed, 5k			Immediately	$ 63.00
10B	316438000		Burner, Sealed, 12k				$ 75.34
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 58.28
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 196.88
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 12.44
11B	316540702		Ignitor/orifice Assy., Top Burner, 12k, W/holder			Immediately	$ 14.28
11C	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 12.39
2A	5303935308		Valve, 5k Top Burner, W/mtg Screw				$ 78.75
2B	5303935309		Valve, Top Burner, 9.5k/tortilla				$ 91.35
2C	5303935306		Valve, Top Burner, Blue Stem				$ 89.78
2D	5303935305		Valve, 9.5k Burner, W/mtg Screw				$ 85.84
44A	316527504		Orifice, Burner, 5k				$ 25.20
44B	316527502		Orifice, Burner, 12k				$ 25.20
44C	316527500		Orifice, Burner, 9.5k				$ 23.78
NI	5304494425		Harness, Ignitor   (Replaces: 316580602)				$ 96.06
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316434900		Shield, Valve, Bridge Burner				$ 11.55
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 8.66
NIA	316498100		Shield, Wire, Safety Valve				$ 16.85
NIA	316401500		Cover, Broil Ignitor				$ 14.32
