01 - Cover Sheet

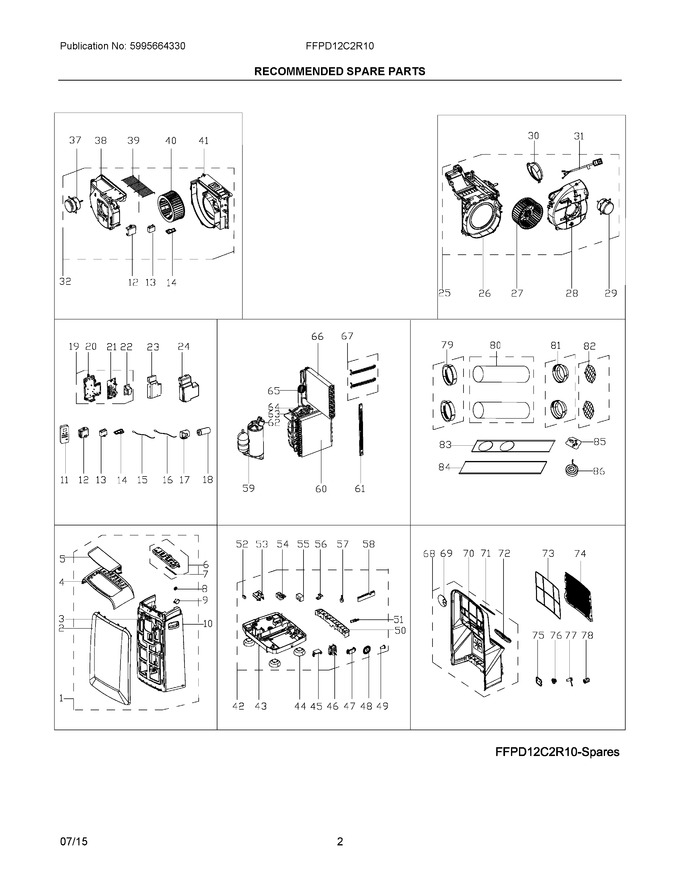

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304502083 | Panel Assembly, Front, W/pcb |
|
- | |||||
| 2 | 5304502084 | Panel, Front |
|
- | |||||
| 3 | 5304502085 | Receiver Assy, Remote Control |
|
- | |||||
| 4 | 5304502086 | Panel, Top |
|
- | |||||
| 5 | 5304502087 | Louver, Air Discharge, Top, Swing |
|
- | |||||
| 6 | 5304502088 | Display Box Assembly, W/pcb |
|
- | |||||
| 7 | 5304502089 | Connector, Display Board, Wire |
|
- | |||||
| 8 | 5304502090 | Gear, Swing Motor |
|
- | |||||
| 9 | 5304502091 | Motor, Louver Swing, Stepping |
|
- | |||||
| 10 | 5304502092 | Wrapper, Cabinet, Front |
|
- | |||||
| 11 | 5304502093 | Remote Control, Transmitter |
|
- | |||||
| 12 | 5304502094 | Housing, Capacitor |
|
- | |||||
| 13 | 5304502095 | Capacitor, Fan, Motor |
|
- | |||||
| 14 | 5304502096 | Bracket, Capacitor Mount |
|
- | |||||
| 15 | 5304502097 | Sensor, Temperature, Room |
|
- | |||||
| 16 | 5304502098 | Sensor, Temperature, Evaporator |
|
- | |||||
| 17 | 5304502014 | Cap, Capacitor, Compressor |
|
- | |||||
| 18 | 5304512385 | Capacitor, Compressor (Replaces: 5304502099) |
|
- | |||||
| 19 | 5304502100 | Control Assembly |
|
- | |||||
| 20 | 5304502101 | Housing, Control Board, Bottom |
|
- | |||||
| 21 | 5304502102 | Pc Board, Control/power, Main |
|
- | |||||
| 22 | 5304502103 | Transformer |
|
- | |||||
| 23 | 5304502104 | Cover, Control Box, Metal |
|
- | |||||
| 24 | 5304502105 | Cover, Control Box, Plastic |
|
- | |||||
| 25 | 5304502106 | Scroll Assembly, Air Exhaust |
|
- | |||||
| 26 | 5304502107 | Scroll, Exhaust |
|
- | |||||
| 27 | 5304502108 | Blower, Exhaust Fan |
|
$ 154.51 | |||||
| 28 | 5304502109 | Cover, Exhaust Scroll |
|
- | |||||
| 29 | 5304502110 | Motor, Exhaust Fan |
|
- | |||||
| 30 | 5304502111 | Adapter, Exhaust |
|
- | |||||
| 31 | 5304536817 | Power Cord, Electric, 115v, Lcdi (Replaces: 5304502112) |
|
- | |||||
| 32 | 5304502113 | Scroll Assembly, Air Inlet |
|
- | |||||
| 37 | 5304502114 | Motor, Air Inlet Fan |
|
- | |||||
| 38 | 5304502115 | Scroll, Air Inlet |
|
- | |||||
| 39 | 5304502116 | Grille, Air Inlet, Indoor |
|
- | |||||
| 40 | 5304502117 | Blower, Air Inlet Fan |
|
$ 107.02 | |||||
| 41 | 5304502118 | Cover, Air Inlet, Scroll |
|
- | |||||
| 42 | 5304502119 | Base Assembly, Chassis |
|
- | |||||
| 43 | 5304502120 | Base, Unit Chassis |
|
- | |||||
| 44 | 5304502037 | Caster, Roller, (4) |
|
$ 23.39 | |||||
| 45 | 5304502121 | Cover, Slinger Motor, Upper |
|
- | |||||
| 46 | 5304502122 | Motor, Slinger, Shaded Pole |
|
- | |||||
| 47 | 5304502123 | Cover, Slinger Motor, Lower |
|
- | |||||
| 48 | 5304502039 | Slinger, Water Wheel, Condensate |
|
- | |||||
| 49 | 5304502043 | Stopper, Drain, Chassis/base |
|
$ 14.89 | |||||
| 50 | 5304502124 | Bracket, Connector, Base Pan |
|
- | |||||
| 51 | 5304502125 | Hose, Water, Drain Pan |
|
- | |||||
| 52 | 5304502126 | Microswitch |
|
- | |||||
| 53 | 5304502127 | Bracket, Switch Holder |
|
- | |||||
| 54 | 5304502128 | Housing, Float Case |
|
- | |||||
| 55 | 5304502129 | Float, Bobber |
|
- | |||||
| 56 | 5304502130 | Bracket, Float Switch |
|
- | |||||
| 57 | 5304502131 | Switch, Float, Lower, Pump Out |
|
- | |||||
| 58 | 5304502132 | Splash Guard, Condensate, Foam |
|
- | |||||
| 59 | 5304502133 | Compressor |
|
- | |||||
| 60 | 5304502134 | Condenser |
|
- | |||||
| 61 | 5304502135 | Bracket, Condenser, Vertical |
|
- | |||||
| 62 | 5304502136 | Overload Protector, Compressor |
|
- | |||||
| 63 | 5304502137 | Tube, Suction |
|
- | |||||
| 64 | 5304502138 | Tube, Discharge |
|
- | |||||
| 65 | 5304502139 | Tube, Capillary |
|
- | |||||
| 66 | 5304502140 | Evaporator |
|
- | |||||
| 67 | 5304502141 | Bracket, Condenser, Horizontal |
|
- | |||||
| 68 | 5304502142 | Panel Assembly, Rear |
|
- | |||||
| 69 | 5304502143 | Cover, Ventilation |
|
- | |||||
| 70 | 5304502144 | Panel, Rear |
|
- | |||||
| 71 | 5304502145 | Grille, Outdoor |
|
- | |||||
| 72 | 5304502146 | Grille, Preventative |
|
- | |||||
| 73 | 5304502147 | Filter, Air Intake |
|
- | |||||
| 74 | 5304502148 | Grille, Air Intake, Filter Frame |
|
- | |||||
| 75 | 5304502149 | Door, Storage, Power Cord |
|
- | |||||
| 76 | 5304502150 | Connector, Drain Hose, Threaded |
|
- | |||||
| 77 | 5304502151 | Plug, Drain Spigot, Rear |
|
- | |||||
| 78 | 5304502044 | Cover, Drain Connector |
|
$ 14.49 | |||||
| 79 | 5304502152 | Adapter A, Hose-to-unit |
|
$ 26.23 | |||||
| 80 | 4056015342 | Hose, Exhaust (Replaces: 5304502153) |
|
- | |||||
| 81 | 5304538651 | Adapter B, Hose-to-window (Replaces: 5304502059) |
|
- | |||||
| 82 | 5304502060 | Screen, Exhaust Hose |
|
$ 65.92 | |||||
| 83 | 5304502154 | Window Slider-1 (with Hole) |
|
- | |||||
| 84 | 5304502062 | Window Slider-2 (no Hole) |
|
$ 104.90 | |||||
| 85 | 5304502063 | Installation Kit, Mtg Hardware |
|
$ 14.89 | |||||
| 86 | 5304502064 | Seal Kit, Foam, Sash Filler |
|
$ 32.54 |
