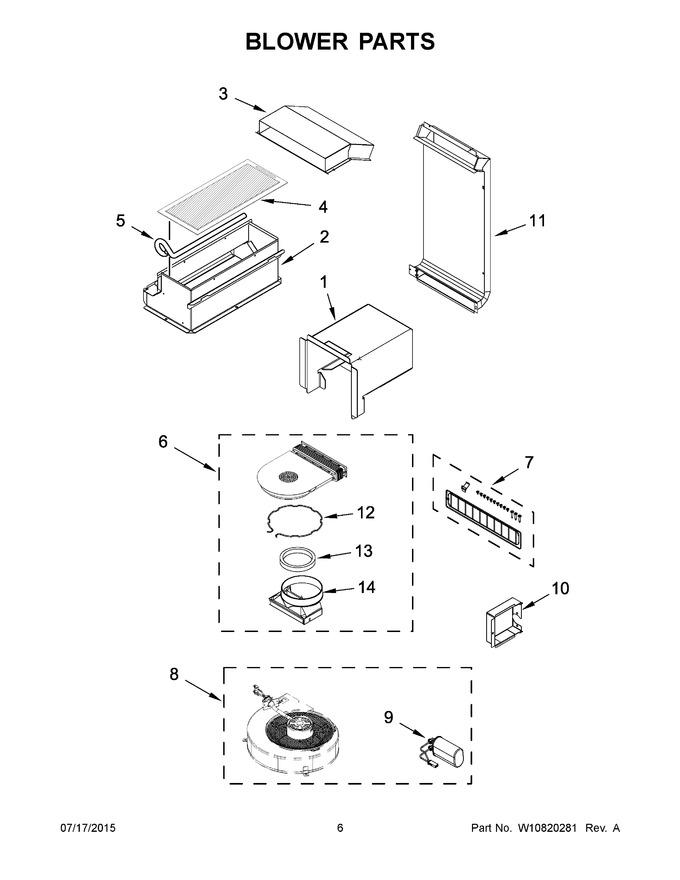

04 - Blower Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10661156 | Enclosure, Blower |
|
$ 137.95 | |||||
| 2 | W10572224 | Plenum, Intake |
|
$ 219.70 | |||||
| 3 | W10572145 | Plenum, Upper |
|
$ 201.42 | |||||
| 4 | W11190170 | Grease, Filter (Replaces: W10575379) |
|
Immediately | $ 70.62 | ||||
| 5 | W10575393 | Guard, Filter |
|
$ 13.95 | |||||
| 6 | W11129407 | Kit, Plenum Transition (Replaces: W10789431) |
|
Immediately | $ 456.58 | ||||
| 7 | W11190818 | Kit, Blower Installation (Replaces: W10789391) |
|
Immediately | $ 112.72 | ||||
| 8 | W10921431 | Kit, Blower (Replaces: W10789388) |
|
$ 555.62 | |||||
| 9 | W11209781 | Capacitor, Assembly (Replaces: W10788527) |
|
Immediately | $ 93.20 | ||||
| 10 | W10787917 | Cover, Capicator |
|
$ 72.62 | |||||
| 11 | W10661835 | Plenum, Side |
|
$ 211.86 | |||||
| 12 | W10702071 | Retainer |
|
Immediately | $ 117.55 | ||||
| 13 | W10759311 | Gasket, Blower |
|
Immediately | $ 83.31 | ||||
| 14 | W10642096 | Adaptor, Exhaust |
|
Immediately | $ 198.12 |
