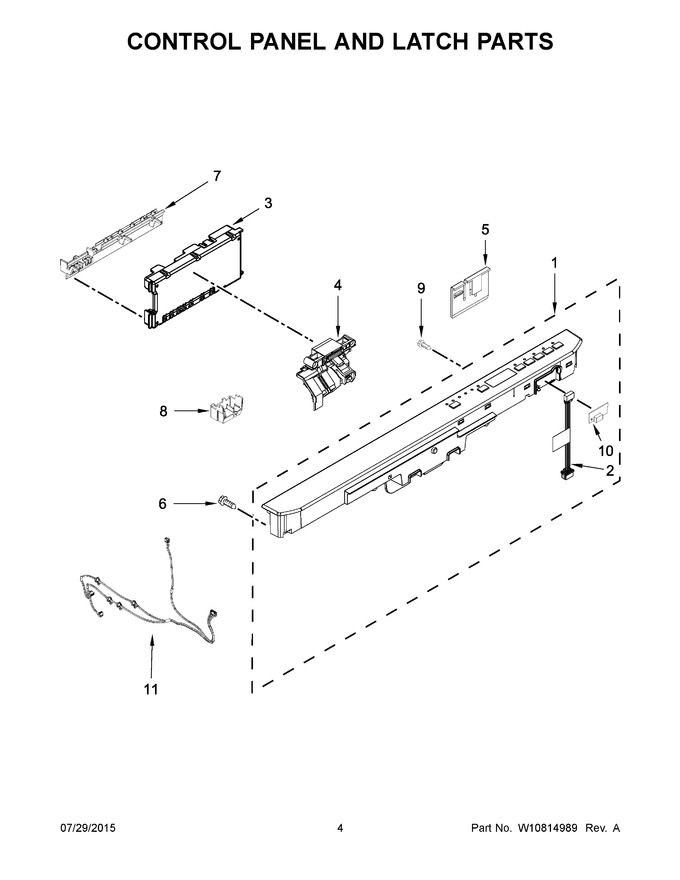

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10620447 | Console Assembly (black) |
|
Immediately | $ 394.21 | ||||
| 2 | W11028004 | Jumper, 4-wire (Replaces: W10566903) |
|
$ 22.37 | |||||
| 3 | W10737607 | Control, Electronic (Replaces: W10712071) |
|
$ 298.58 | |||||
| 4 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 5 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 6 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 8 | W10783730 | Box, Connector (Replaces: W10756253) |
|
$ 31.41 | |||||
| 9 | WPW10348408 | Screw (long) (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 10 | WPW10195836 | Light, Status (Replaces: W10195836) |
|
$ 79.33 | |||||
| 11 | W10751782 | Jumper, Door Switch |
|
$ 23.25 | |||||
| 1A | W10620448 | Console Assembly (white) |
|
$ 390.20 | |||||
| 1B | W11700630 | Console Assembly (stainless) (Replaces: W10620449) |
|
Immediately | $ 401.57 |
