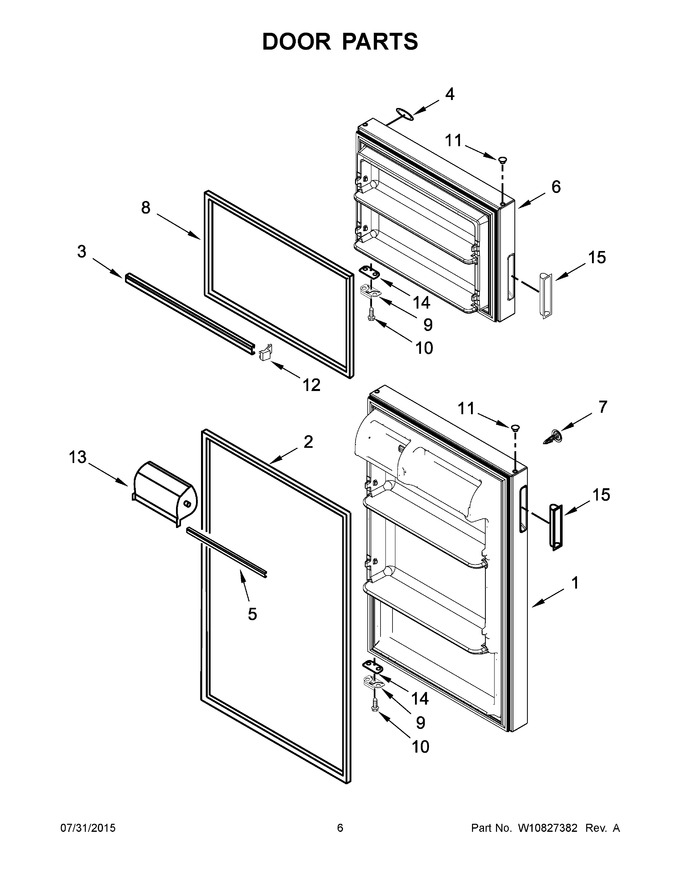

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10573330 | Refrigerator Door (includes Illustration 2 & Door Handle) (white) (Replaces: W10573330) |
|
$ 726.47 | |||||
| 2 | 2319266W | Door Gasket, Magnetic (white) (Replaces: 2264729) |
|
$ 344.81 | |||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 120.57 | ||||
| 4 | W11428492 | Badge, Amana (Replaces: W10200425) |
|
$ 83.57 | |||||
| 5 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 6 | LW10573333 | Freezer Door (includes Illustration 8 & Door Handle) (white) (Replaces: W10573333) |
|
$ 686.62 | |||||
| 7 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 19.22 | ||||
| 8 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 265.20 | ||||
| 9 | W10492012 | Bracket, Door Stop |
|
$ 16.85 | |||||
| 10 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 11 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 73.21 | ||||
| 14 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 15 | W10182940 | Handle, Cup (white) |
|
$ 72.41 |
