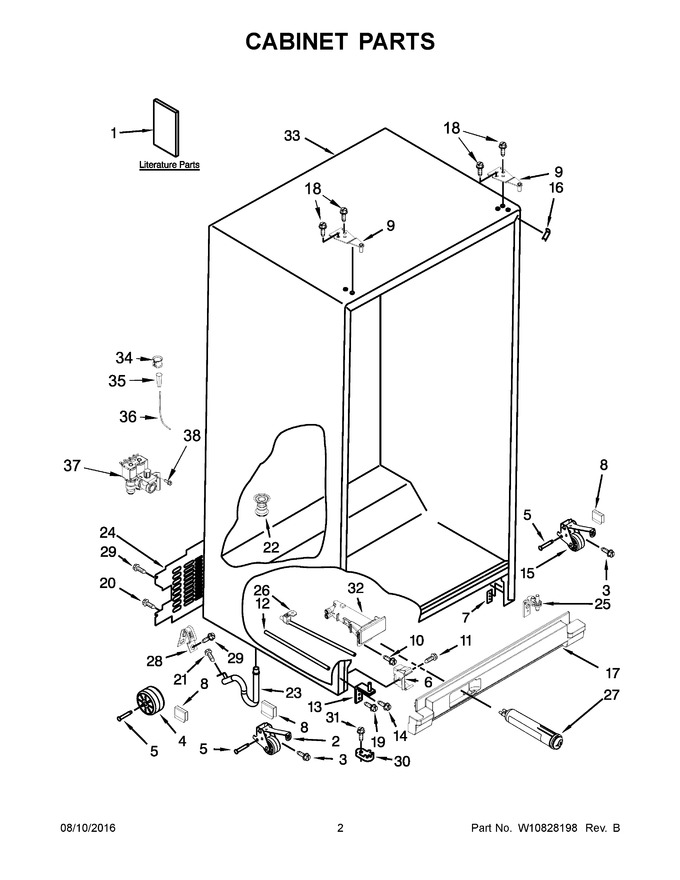

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10452514 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Roller Assembly (left Hand) (Replaces: W10304660) |
|
Immediately | $ 70.38 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.05 | |||||
| 4 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 18.21 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 14.23 | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W10876799) |
|
Immediately | $ 18.21 | ||||
| 9 | W11579508 | Hinge, Top (black) (Replaces: W10704884) |
|
$ 35.06 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.78 | |||||
| 11 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 12 | WPW10350006 | Tube, Filter Outlet (Replaces: W10350006) |
|
$ 115.54 | |||||
| 13 | W10646418 | Assembly, Bottom Hinge (freezer) (Replaces: W10414753) |
|
Immediately | $ 38.73 | ||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 15 | WPW10304659 | Roller Assembly (right Hand) (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 16 | W11252732 | Filler, Wrapper (black) (Replaces: W10283960) |
|
$ 12.45 | |||||
| 17 | W10348651 | Grille (black) |
|
$ 59.90 | |||||
| 18 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 8.41 | |||||
| 19 | W10856122 | Screw (Replaces: 3400103) |
|
$ 7.76 | |||||
| 20 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.68 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 50.90 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 34.79 | |||||
| 24 | WP2188755 | Cover, Unit (Replaces: 2188739) |
|
$ 135.91 | |||||
| 25 | W11049959 | Assembly, Bottom Hinge (refrigerator) (Replaces: W10714071) |
|
$ 76.06 | |||||
| 26 | WPW10350007 | Tube, Filter Inlet (Replaces: W10350007) |
|
$ 125.46 | |||||
| 27 | W10569758 | Filter, Water |
|
$ 0.03 | |||||
| 28 | 549193 | Clamp, Power Cord |
|
$ 13.39 | |||||
| 29 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 30 | W11778262 | Closer, Door (freezer) (Replaces: W10846218) |
|
$ 11.08 | |||||
| 31 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.87 | |||||
| 32 | W10862460 | Housing, Water Filter (black) (Replaces: W10350063) |
|
Immediately | $ 215.90 | ||||
| 33 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 34 | W10823511 | Tube, Water (Replaces: W10357076) |
|
Immediately | $ 32.41 | ||||
| 35 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 62.76 | |||||
| 36 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.84 | |||||
| 37 | WPW10179146 | Assembly, Filter Valve (Replaces: W10179146) |
|
Immediately | $ 99.47 | ||||
| 38 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 1A | W10568358 | Service & Wiring Sheet |
|
- | |||||
| 1B | W10725063 | Energy Guide |
|
- |
