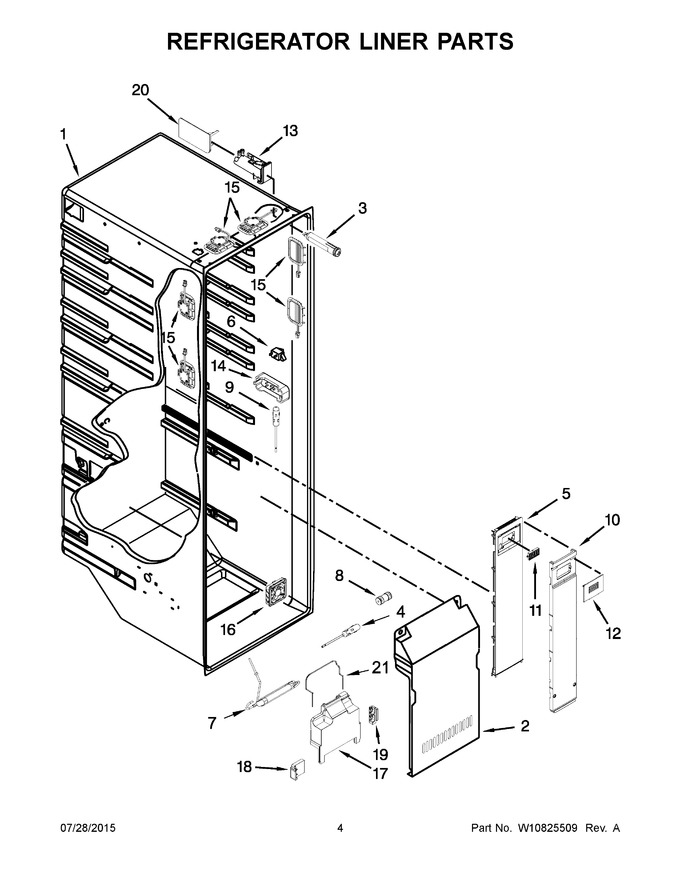

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10859809 | Cover, Evaporator (Replaces: W10251454) |
|
$ 263.42 | |||||
| 3 | W10569761 | Cartridge, Water Filter |
|
- | |||||
| 4 | W10316760 | Thermistor, Evaporator Fan (Replaces: W10323459) |
|
Immediately | $ 72.91 | ||||
| 5 | W10513685 | Cover, Air Tower |
|
- | |||||
| 6 | W11384469 | Switch, Light (Replaces: W10656773) |
|
Immediately | $ 39.09 | ||||
| 7 | W11204869 | Reservoir (Replaces: W10504456) |
|
$ 167.67 | |||||
| 8 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 10 | W10156707 | Tower, Air |
|
$ 95.50 | |||||
| 11 | W10349302 | Air Filter |
|
- | |||||
| 12 | W10321024 | Air Filter Cover |
|
- | |||||
| 13 | WPW10329943 | Housing, Water Filter (Replaces: W10329943) |
|
$ 78.49 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10425252) |
|
Immediately | $ 88.38 | ||||
| 15 | W11683241 | Assembly, Led Light Module (Replaces: W10637153) |
|
Immediately | $ 271.97 | ||||
| 16 | W10451901 | Fan Assembly, Evap |
|
$ 270.14 | |||||
| 17 | W10451966 | Evap Insulation, W/fan Assy |
|
- | |||||
| 18 | W11028224 | Support, Evaporator (left Hand) (Replaces: W10223366) |
|
$ 11.98 | |||||
| 19 | W10837626 | Support, Evaporator (right Hand) (Replaces: W10223364) |
|
$ 75.86 | |||||
| 20 | W10300484 | Cover, Water Filter |
|
$ 129.99 | |||||
| 21 | W11702233 | Gasket, Rear (Replaces: W10260462) |
|
$ 45.02 |
