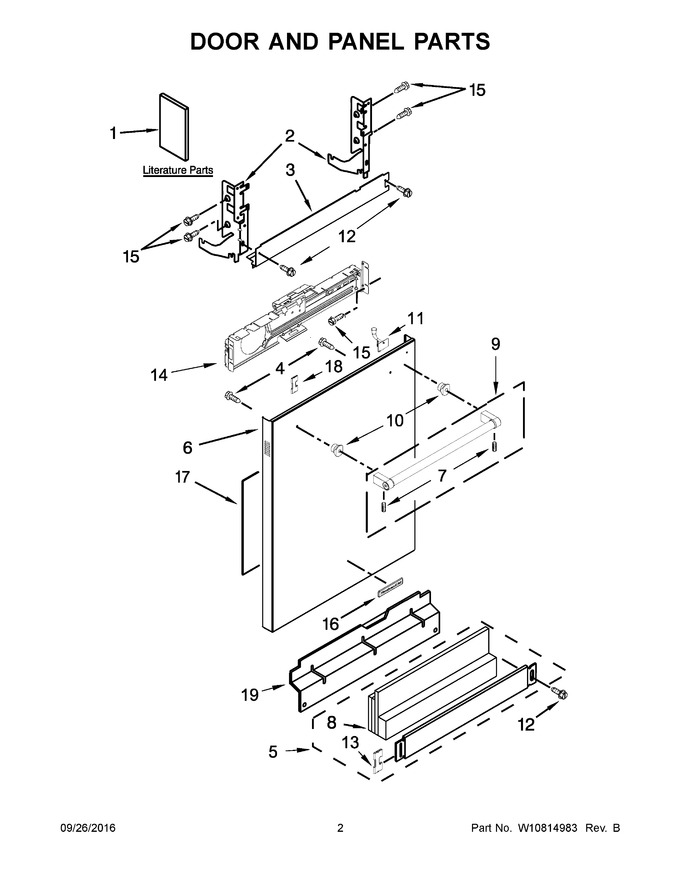

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W10919287		Screw   (Replaces: W10696150)				$ 11.24
5	W10871196		Toe Panel (black)   (Replaces: W10586590)				$ 174.04
6	W10901498		Panel, Front (includes 4, 10, 11 & 16) (black)   (Replaces: W10796429)				$ 417.86
7	W10917698		Set Screw   (Replaces: W10687133)			Immediately	$ 7.55
8	W10831329		Insulation, Four Layer   (Replaces: W10526105)			Immediately	$ 43.30
9	W10708004		Handle Assembly (stainless)   (Replaces: W10786161)			Immediately	$ 141.35
10	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
11	W10831645		Light Pipe   (Replaces: W10794483)				$ 80.79
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
13	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
14	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	W10909682		Nameplate (grey)   (Replaces: W10518672)			Immediately	$ 76.20
17	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
18	W10692757		Barrel Nut, Front Panel				$ 16.01
19	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 42.25
12A	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
19A	W10852732		Access Panel (white)		Appelez-nous	-
1A	W10746816		Energy Guide		Appelez-nous	-
1B	W10751710		Use & Care Guide		Appelez-nous	-
1C	W10750900		Tech Sheet, English		Appelez-nous	-
1D	W10754472		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
5A	WPW10586591		Toe Panel (white)   (Replaces: W10586591)				$ 309.39
6A	W10911301		Panel, Front (includes 4, 10, 11 & 16) (white)   (Replaces: W10796430)				$ 419.52
6B	W10900374		Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10796428)			Immediately	$ 419.85
