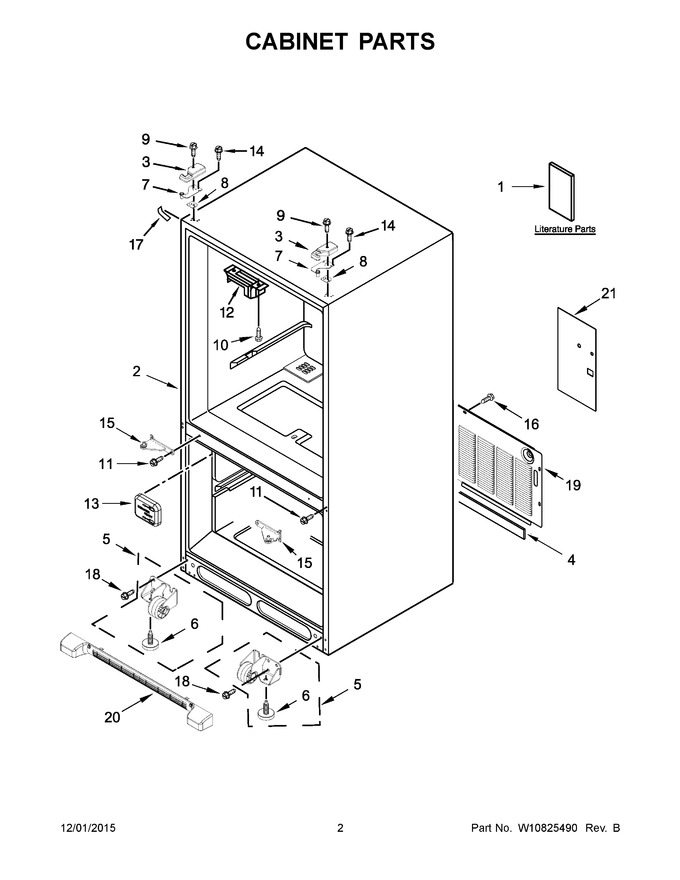

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10597594 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337634 | Cover, Hinge Left Hand (white) (Replaces: W10337634) |
|
Immediately | $ 22.42 | ||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 8 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 94.79 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.43 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.88 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 13 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 8.03 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918113 | Hinge, Center Left Hand (white) (Replaces: 13000001WD) |
|
$ 93.26 | |||||
| 16 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 18 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.69 | ||||
| 19 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 196.41 | |||||
| 20 | WPW10534161 | Grille, Toe (white) (Replaces: W10534161) |
|
$ 140.09 | |||||
| 21 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 15A | W10918164 | Hinge, Center Left Hand (black) (Replaces: 13000007ED) |
|
$ 86.64 | |||||
| 15B | W10917988 | Hinge, Center Left Hand (grey) (Replaces: 13000001AP) |
|
Immediately | $ 91.08 | ||||
| 15C | 13000002WD | Hinge, Center Right Hand (white) |
|
$ 153.32 | |||||
| 15D | W10918164 | Hinge, Center Right Hand (black) (Replaces: 13000008ED) |
|
$ 86.64 | |||||
| 15E | W10917988 | Hinge, Center Right Hand (grey) (Replaces: 13000002AP) |
|
Immediately | $ 91.08 | ||||
| 17A | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 17B | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.69 | |||||
| 1A | W10679756 | Energy Guide |
|
- | |||||
| 1B | W10787418 | Tech Sheet (english) |
|
- | |||||
| 1C | W10787417 | Tech Sheet (french) |
|
- | |||||
| 20A | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 141.10 | |||||
| 20B | WPW10534160 | Grille, Toe (grey) (Replaces: W10534160) |
|
Immediately | $ 72.60 | ||||
| 3A | W10337647 | Cover, Hinge Left Hand (black) |
|
Immediately | $ 22.22 | ||||
| 3B | WPW10337648 | Cover, Hinge Left Hand (grey) (Replaces: W10337648) |
|
$ 22.02 | |||||
| 3C | 67005958 | Cover, Hinge Right Hand (white) (Replaces: 12962302W) |
|
$ 20.54 | |||||
| 3D | WP67005956 | Cover, Hinge Right Hand (black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 3E | WPW10191117 | Cover, Hinge Right Hand (grey) (Replaces: 12962302AP) |
|
$ 21.95 | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 7A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 8A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 95.81 |
