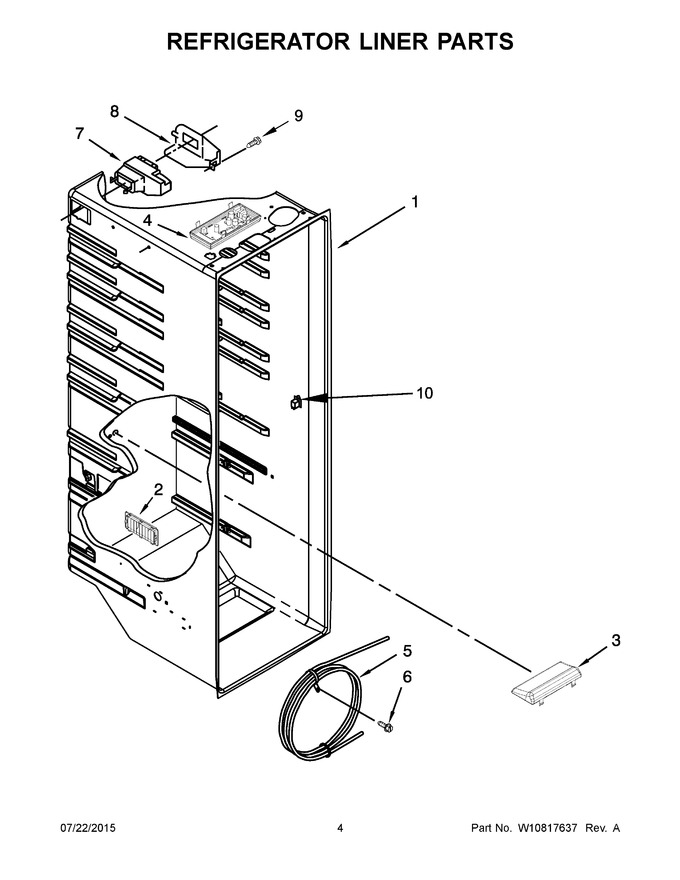

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10550195		Louver		Appelez-nous	-
3	WPW10515057		Assembly, Led Light (tapered Lens)   (Replaces: W10515057)			Immediately	$ 47.29
4	WPW10515058		Assembly, Led Light (flat Lens)   (Replaces: W10515058)			Immediately	$ 37.12
5	WPW10276792		Tubing, Water Reservoir   (Replaces: W10276792)				$ 144.45
6	488280		Screw		Appelez-nous	-
7	W10899382		Assembly, Air Diffuser   (Replaces: W10128734)				$ 201.44
8	W10128735		Cover, Air Diffuser		Appelez-nous	-
9	W10141518		Screw				$ 9.54
10	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 39.09

    View Diagram in Separate Window       Print Part List
