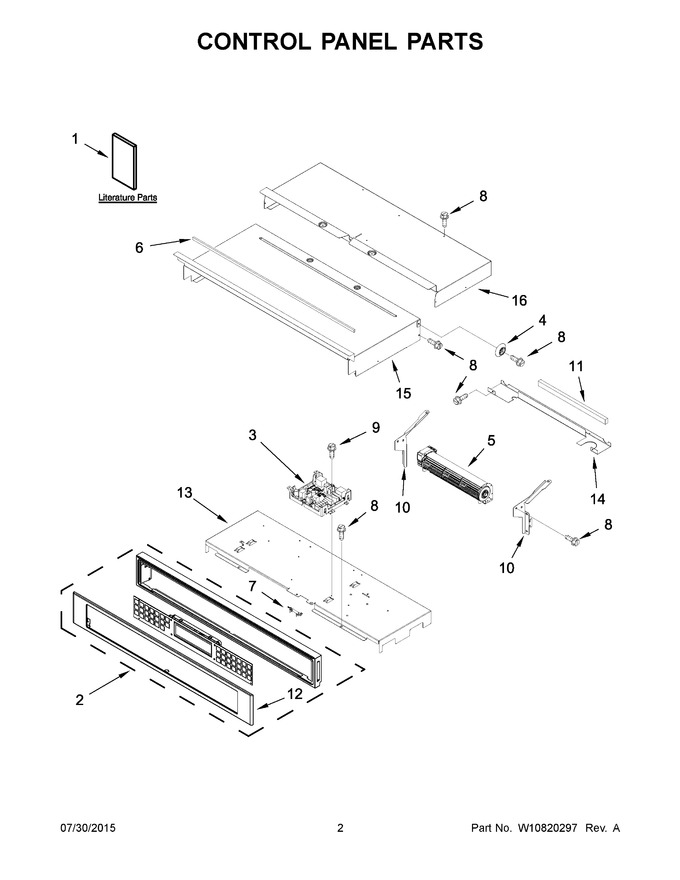

02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10643471 | Guide, Use & Care |
|
- | |||||
| 2 | W11093250 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10588709) |
|
Immediately | $ 899.33 | ||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W10777215) |
|
Immediately | $ 456.49 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11713858 | Blower (Replaces: W10669823) |
|
Immediately | $ 348.59 | ||||
| 6 | W11226313 | Gasket, Rubber (Replaces: W10671226) |
|
$ 24.40 | |||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10436434) |
|
Immediately | $ 27.91 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10588745 | Skin, Control Panel (black) |
|
- | |||||
| 13 | W10694467 | Tray, Electronic |
|
- | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10318193 | Chassis, Cover Top Front 27 |
|
$ 136.08 | |||||
| 16 | W10694466 | Chassis, Cover Top Back 27 |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 12A | W10588747 | Skin, Control Panel (white) |
|
- | |||||
| 12B | W10588741 | Skin, Control Panel (stainless) |
|
$ 241.78 | |||||
| 1A | W10725670 | Instructions, Installation |
|
- | |||||
| 1B | W10756610 | Sheet, Tech |
|
- | |||||
| 2A | W10916755 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W10588715) |
|
Immediately | $ 552.10 | ||||
| 2B | W10588712 | Assembly, Control Panel (includes Overlay) (stainless) |
|
$ 582.52 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 45.42 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10632451 | Harness, Main |
|
$ 342.44 | |||||
| NI | W11157218 | Harness, Signal (Replaces: W10603909) |
|
$ 119.69 | |||||
| NI | W10573327 | Harness, Door Latch |
|
$ 67.67 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
Immediately | $ 32.95 | ||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 |
