01 - Cover Sheet

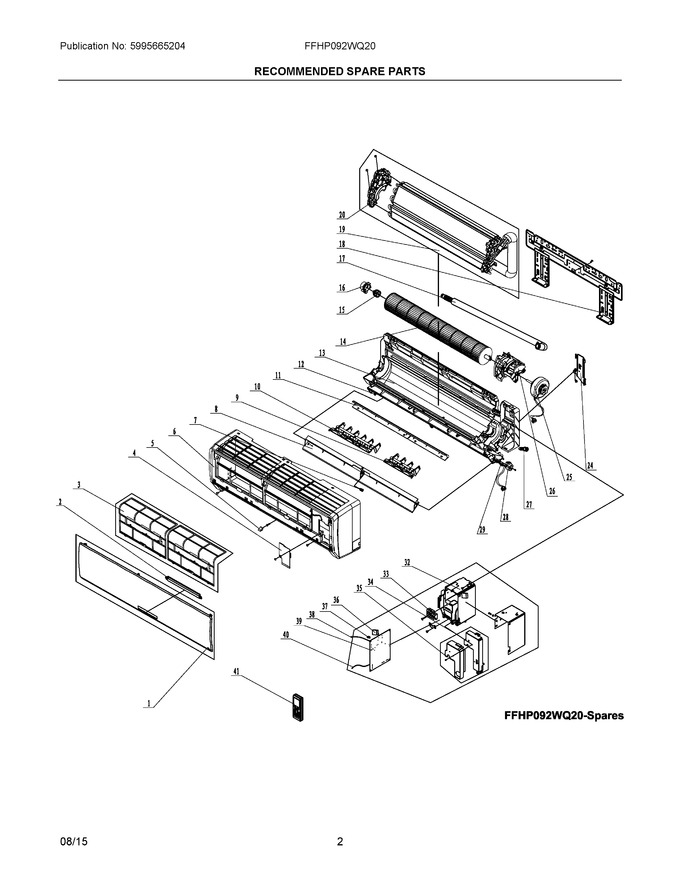

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304502195		Panel, Front		Appelez-nous	-
2	5304502196		Pc Board, Display/input		Appelez-nous	-
3	5304483233		Filter, Air, (2)		Appelez-nous	-
4	5304502197		Cover 2, Control Box		Appelez-nous	-
5	5304482789		Cover, Screws, Front Assembly		Appelez-nous	-
6	5304502198		Frame, Front Assembly		Appelez-nous	-
7	5304502199		Bushing, Lower Shaft				$ 18.79
8	5304502200		Louver, Horizontal		Appelez-nous	-
9	5304482781		Louver, Vertical, Right, Short		Appelez-nous	-
10	5304482782		Louver, Vertical, Left, Long		Appelez-nous	-
11	5304502201		Diffuser, Air Vent, Main Louver		Appelez-nous	-
12	5304482905		Bushing, Louver Shaft, Left		Appelez-nous	-
13	5304482773		Casing, Rear		Appelez-nous	-
14	5304482776		Blower Wheel, Cross Flow Fan				$ 89.62
15	5304502202		O'ring, Bearing, Gasket/seal				$ 20.48
16	5304482777		Bearing Block, Housing, W/o'ring				$ 10.61
17	5304482780		Hose, Drain		Appelez-nous	-
18	5304483235		Plate, Installation, Wall Mount		Appelez-nous	-
19	5304502203		Evaporator		Appelez-nous	-
20	5304482775		Support, Evaporator		Appelez-nous	-
24	5304482791		Clamp, Drain Hose		Appelez-nous	-
25	5304502204		Motor, Blower Fan		Appelez-nous	-
26	5304482793		Housing, Motor Cover		Appelez-nous	-
27	5304482805		Drain Plug, Drip Tray		Appelez-nous	-
28	5304502205		Motor, Louver, Horizontal		Appelez-nous	-
29	5304482907		Lever, Louver Control, Crank		Appelez-nous	-
32	5304502207		Control Box		Appelez-nous	-
33	5304482804		Terminal Block, 4-bit		Appelez-nous	-
34	5304502208		Shield, Interference, Electrical		Appelez-nous	-
35	5304502209		Cover 1, Control Box		Appelez-nous	-
36	5304502210		Capacitor, Blower Motor		Appelez-nous	-
37	5304502211		Connector, Electrical, Jumper		Appelez-nous	-
38	5304502212		Sensor, Temperature, Ambient		Appelez-nous	-
39	5304502214		Pc Board, Main, Control/power		Appelez-nous	-
40	5304502213		Sensor, Temperature, Evaporator		Appelez-nous	-
41	5304502215		Remote Control, Transmitter				$ 150.89
