Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11050804 Cap, Impeller   (Replaces: W10609549) In-Stock Immediately $ 7.79

2 W10752187 Screw   (Replaces: W10625252) In-Stock Immediately $ 8.13

3 W10005430 Clamp, Cable In-Stock Immediately $ 9.08

4 W10849477 Tub Ring   (Replaces: W10578859) Special Order $ 185.41

5 WPW10109200 Screw   (Replaces: 8533943) In-Stock Immediately $ 8.00

6 W10902814 Impeller (washplate)   (Replaces: W10834917) In-Stock Immediately $ 136.03

6 W10902814 Impeller (washplate)   (Replaces: W10609480) In-Stock Immediately $ 136.03

7 WP8533953 Screw   (Replaces: 8533953) In-Stock Immediately $ 7.19

8 W10528947 Hub - Driven, Basket   (Replaces: W10396887) In-Stock Immediately $ 44.23

9 W11385424 Retainer, Drive Block   (Replaces: W10402178) In-Stock Immediately $ 12.35

10 WPW10339879 Cable Tie   (Replaces: W10267532) Special Order $ 7.90

11 W10752719 Basket Assembly   (Replaces: W10586077) In-Stock Immediately $ 419.35

12 W11219115 Tub   (Replaces: W10512161) Special Order $ 368.66

13 WP353244 Hose, Pressure Switch   (Replaces: W10236981) In-Stock Immediately $ 59.93

14 W11568797 Filter, Drain Pump   (Replaces: W11089264) In-Stock Immediately $ 26.79

14 WPW10215093 Filter, Drain Pump   (Replaces: W10215093) Special Order $ 62.15

15 WP8533928 Screw   (Replaces: 8533928) In-Stock Immediately $ 7.82

16 W11130362 Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W11228718) In-Stock Immediately $ 138.31

16 W11130362 Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10748956) In-Stock Immediately $ 138.31

17 W11095106 Harness, Lower   (Replaces: W10777952) In-Stock Immediately $ 167.99

17 W10583768 Ball, Suspension (set Of 4 - Includes Suspension Bushings) Appelez-nous -
18 W10256551 Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls) Appelez-nous -
19 W11095106 Harness, Lower   (Replaces: W10777952) In-Stock Immediately $ 167.99

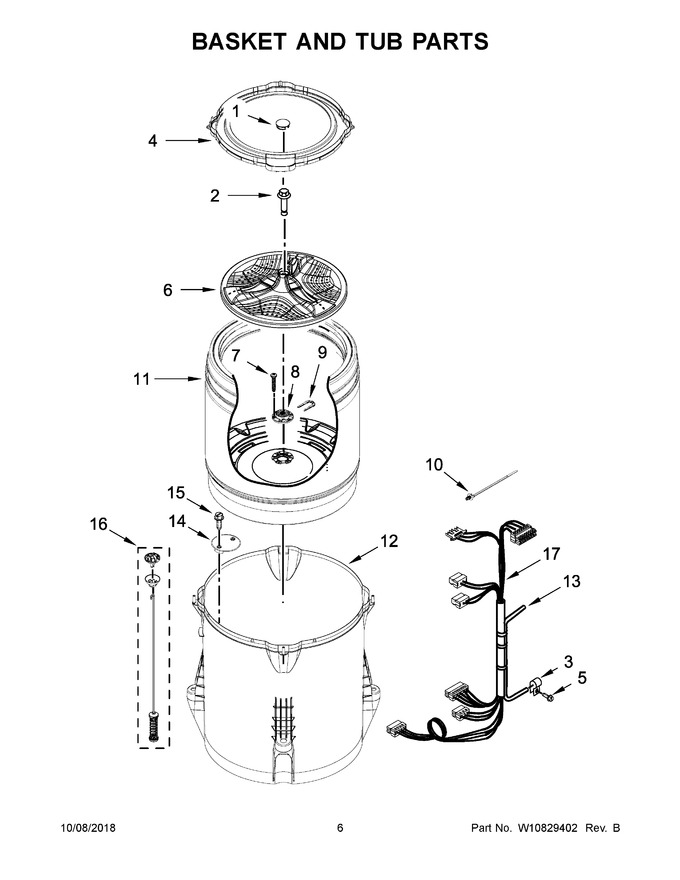

    View Diagram in Separate Window     Print Icon   Print Part List
