01 - Cover Sheet

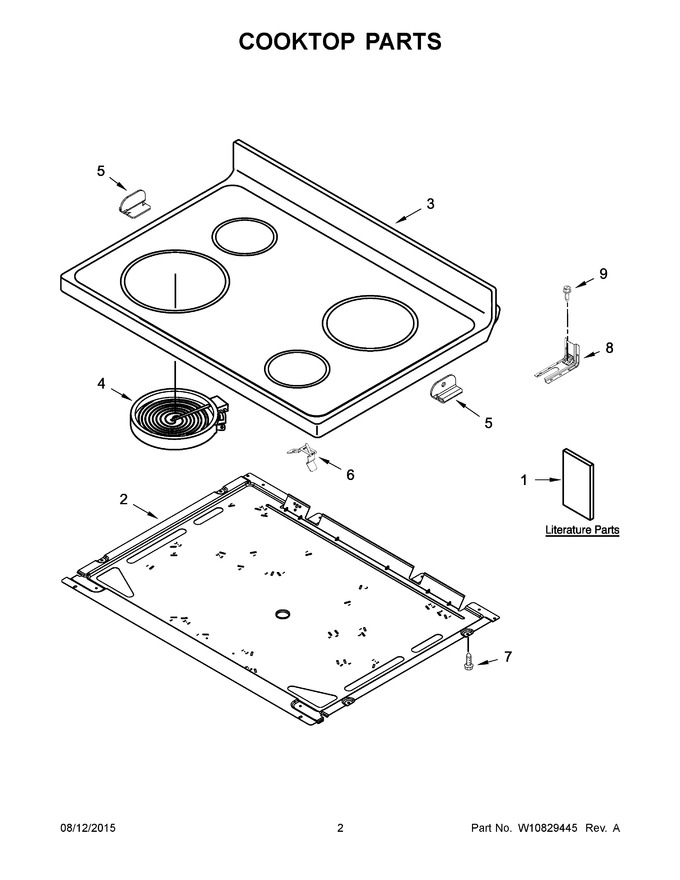

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10789116 | Use And Care Guide |
|
- | |||||
| 2 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 3 | W10636386 | Cooktop (black) (Replaces: W10572575) |
|
$ 713.04 | |||||
| 4 | W10823711 | Element (1200w) (right Front And Left Rear) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 5 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 9 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W10789119 | Tech Sheet |
|
- | |||||
| 1B | W10403812 | Instructions, Installation |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 4A | W10823698 | Element (1800w) (right Rear) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 4B | W11517959 | Element (3000/1400w) (left Front) (Replaces: W10169799) |
|
Immediately | $ 134.44 | ||||
| 5A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10789991 | Harness, Main |
|
- | |||||
| NI | W11172524 | Harness, Sensor (Replaces: W10084660) |
|
$ 217.19 | |||||
| NI | W10744211 | Harness, Wire (cooktop Left) |
|
$ 182.74 | |||||
| NI | W10273584 | Harness, Wire (cooktop Right) |
|
$ 134.76 |
