01 - Cover Sheet


02 - Top And Cabinet Parts

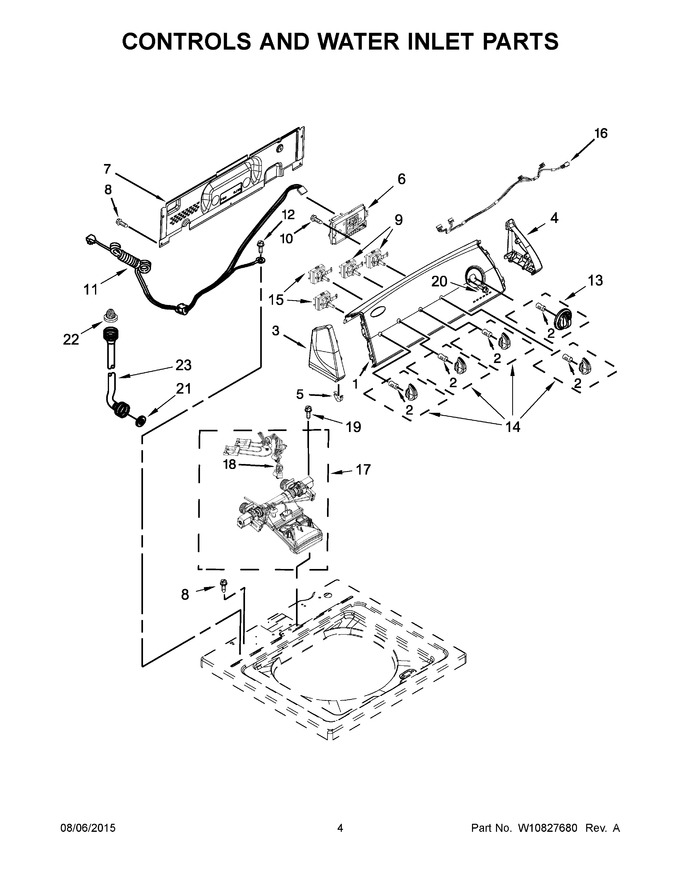

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10524085		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
4	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10723788		Assembly, Control Unit		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10525194)				$ 163.41
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
14	W10034380		Assembly, Control Knob (white/metallic)				$ 25.06
15	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 117.42
16	WPW10291176		Harness, Upper   (Replaces: W10291176)				$ 173.29
17	WPW10683653		Inlet Assembly, Water   (Replaces: W10683653)				$ 216.49
18	W10876654		Harness, Valve   (Replaces: W10684972)				$ 194.92
19	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
20	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
21	WP16123		Washer, Inlet Hose   (Replaces: W10242307)				$ 8.16
22	285452A		Washer, Filter   (Replaces: W10810281)			Immediately	$ 9.69
23	WP89503		Hose, Water Inlet (cold)   (Replaces: W10194210)			Immediately	$ 24.09
23A	WP89503		Hose, Water Inlet (hot)   (Replaces: W10194211)			Immediately	$ 24.09
