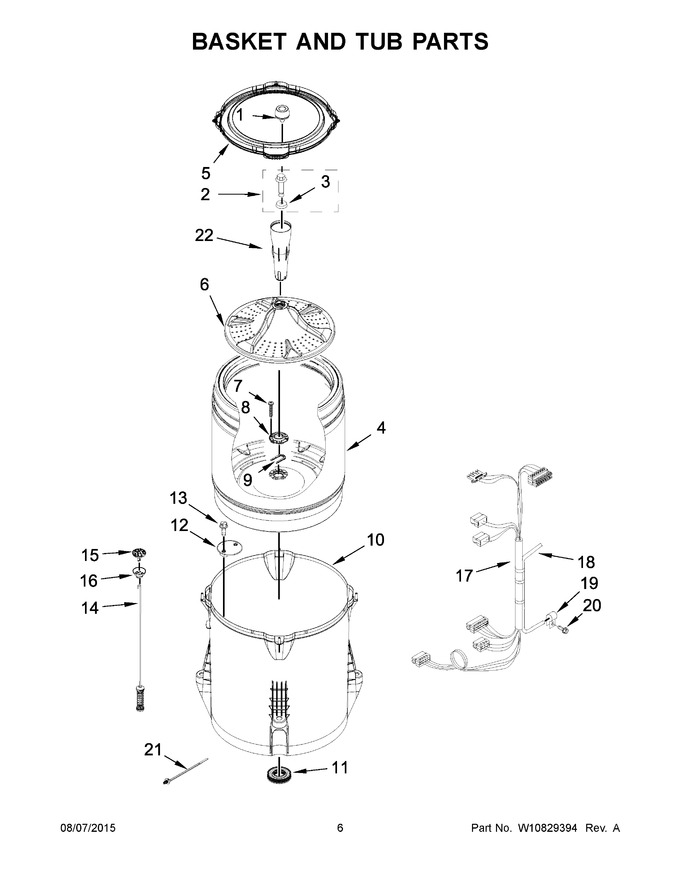

1	W10740335		Dispenser, Fabric Softener				$ 38.30
2	W10772621		Screw And Washer   (Replaces: W10003790)			Immediately	$ 5.30
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	W10521298		Basket Assembly				$ 486.01
5	WPW10556325		Tub Ring   (Replaces: W10556325)			Immediately	$ 204.15
6	W10919191		Impeller (washplate)   (Replaces: W10680219)			Immediately	$ 193.68
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.55
8	W10528947		Hub - Driven, Basket   (Replaces: W10396887)			Immediately	$ 44.62
9	W11385424		Retainer, Drive Block   (Replaces: W10402178)			Immediately	$ 12.97
10	W10324648		Tub   (Replaces: W10238301)				$ 361.85
11	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
12	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
13	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
14	W10780044		Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls)   (Replaces: W10748954)			Immediately	$ 151.24
15	W10583768		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
16	W10256551		Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls)		Appelez-nous	-
17	W10858334		Harness, Lower   (Replaces: W10610081)				$ 223.74
18	WP353244		Hose, Pressure Switch   (Replaces: W10236981)			Immediately	$ 86.67
19	W10005430		Clamp, Cable			Immediately	$ 9.53
20	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
21	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
22	W10836692		Barrel, Agitator   (Replaces: W10680220)			Immediately	$ 139.15

    View Diagram in Separate Window       Print Part List
