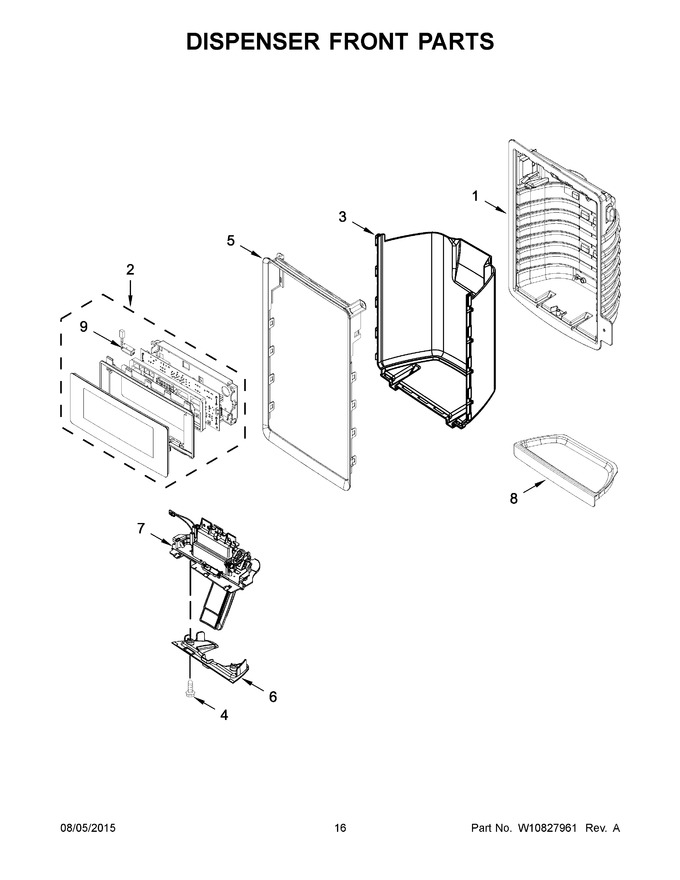

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10864267		Assembly, User Interface (stainless)   (Replaces: W10711090)				$ 392.60
3	W10488324		Wall, Dispenser False (grey)		Appelez-nous	-
4	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.57
5	WPW10402180		Ring, Trim (chrome)   (Replaces: W10402180)			Immediately	$ 54.83
6	W10609518		Cover, Separator		Appelez-nous	-
7	WPW10616134		Assembly, Separator (grey)   (Replaces: W10616134)				$ 188.81
8	WPW10606639		Tray, Drip (grey)   (Replaces: W10606639)				$ 91.26
9	W11290115		Assembly, Led   (Replaces: W10470750)				$ 76.01
