SELECT A DIAGRAM

01 - Cover Sheet

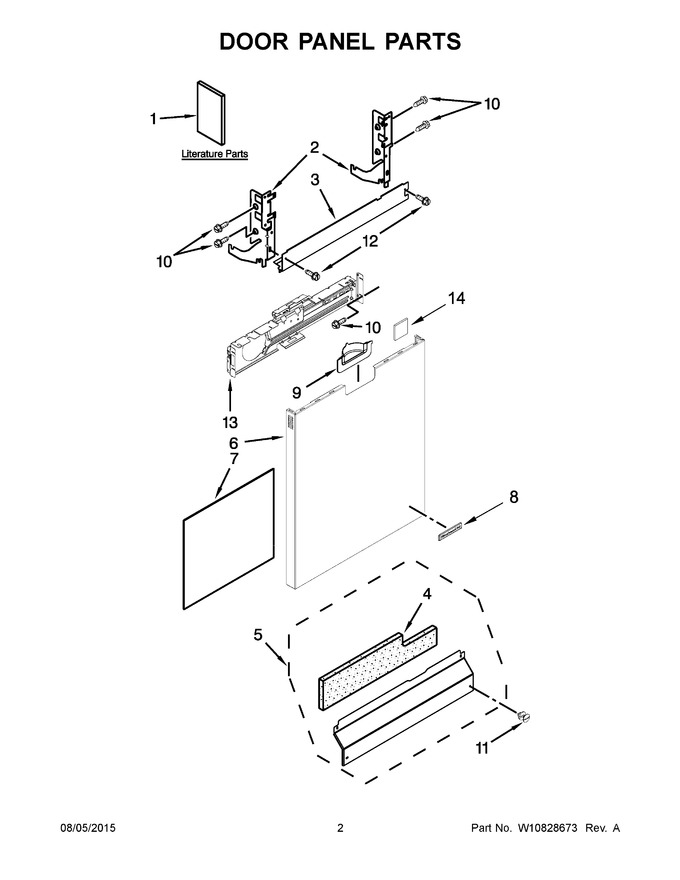

02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10741197		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10726645)			Immediately	$ 32.88
4	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
5	N/P		Access Panel Null		Appelez-nous	-
6	WPW10751393		Panel, Full Front (includes Items 8 & 9) (black)   (Replaces: W10537384)				$ 385.25
7	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
8	WPW10243392		Nameplate (black)   (Replaces: W10243392)				$ 73.70
9	W10537395		Pocket Assembly (black)				$ 173.12
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
13	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
14	W10622466		Block, Foam		Appelez-nous	-
1A	W10579103		Energy Guide		Appelez-nous	-
1B	W10579120		Use & Care Guide		Appelez-nous	-
1C	W10543820		Tech Sheet, English		Appelez-nous	-
1D	W10543821		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24

    View Diagram in Separate Window       Print Part List
