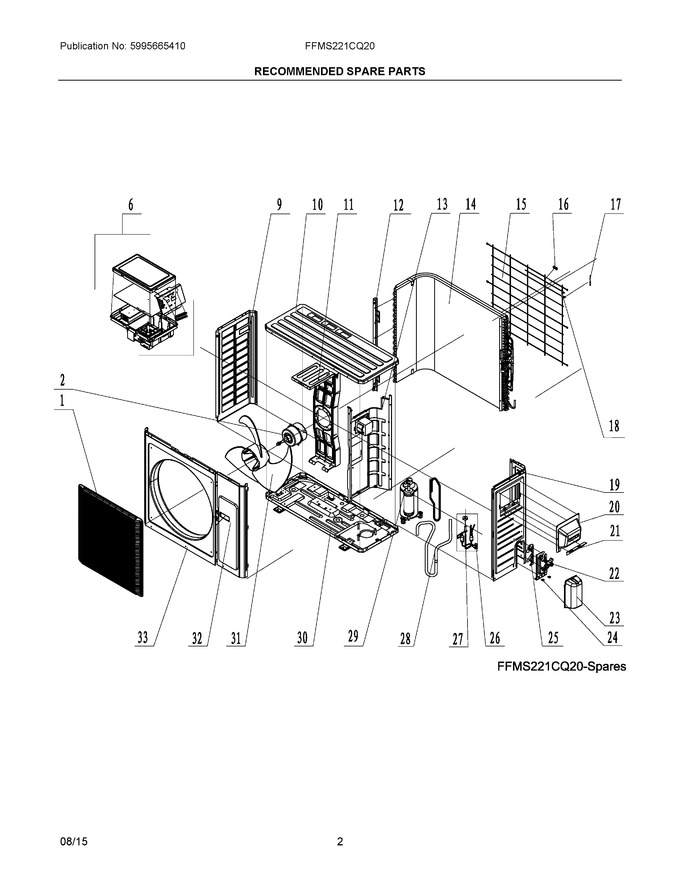

02 - Recommended Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304483744		Grille, Front		Appelez-nous	-
2	5304502366		Motor, Fan		Appelez-nous	-
6	5304503240		Control Box Assembly		Appelez-nous	-
9	5304483751		Panel, Left Side		Appelez-nous	-
10	5304483752		Cover, Unit, Top		Appelez-nous	-
11	5304483753		Bracket, Motor Support		Appelez-nous	-
12	5304483773		Bracket, Support, Condenser		Appelez-nous	-
13	5304502368		Bulkhead, Partition		Appelez-nous	-
14	5304502369		Condenser		Appelez-nous	-
15	5304483756		Grille, Rear		Appelez-nous	-
16	5304483683		Clamp, Wire		Appelez-nous	-
17	5304502340		Sensor, Temperature		Appelez-nous	-
18	5304483684		Sensor Kit				$ 99.94
19	5304483762		Panel, Right Side		Appelez-nous	-
20	5304483688		Handle, Right, Wiring Cover		Appelez-nous	-
21	5304483763		Baffle		Appelez-nous	-
22	5304483783		Valve, Cut-off, 5/8		Appelez-nous	-
23	5304483765		Cover, Valve		Appelez-nous	-
24	5304502370		Bolt		Appelez-nous	-
25	5304483767		Baffle, Valve Bracket		Appelez-nous	-
26	5304483768		Valve, Cut-off, 1/4		Appelez-nous	-
27	5304502371		Winding, Expansion Valve		Appelez-nous	-
28	5304502372		Tube, Discharge		Appelez-nous	-
29	5304502373		Compressor, With Fittings		Appelez-nous	-
30	5304502374		Base, Unit Chassis		Appelez-nous	-
31	5304502375		Fan Blade, Propeller		Appelez-nous	-
32	5304502376		Plate, Front/side		Appelez-nous	-
33	5304502377		Panel, Front		Appelez-nous	-
