01 - Cover Sheet

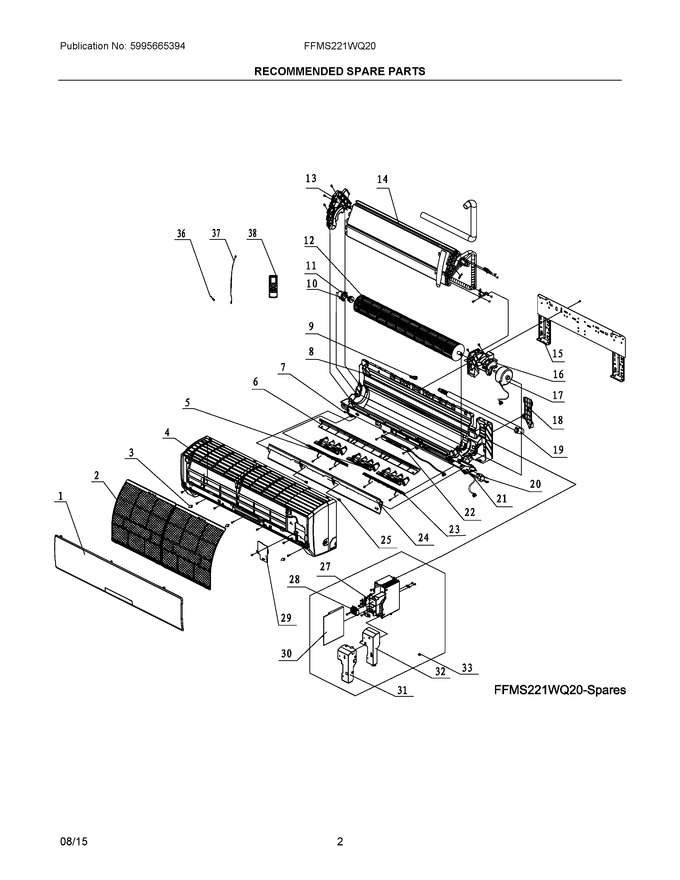

02 - Recommended Spare Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304502355 | Panel, Front |
|
- | |||||
| 2 | 5304483723 | Filter, Air |
|
- | |||||
| 3 | 5304482789 | Cover, Screws, Front Assembly |
|
- | |||||
| 4 | 5304483724 | Front Assembly, Casing |
|
- | |||||
| 5 | 5304483725 | Louver, Vertical |
|
- | |||||
| 6 | 5304483726 | Diffuser, Air Vent, Main Louver |
|
- | |||||
| 7 | 5304482905 | Bushing, Louver Shaft, Left |
|
- | |||||
| 8 | 5304502356 | Cabinet, Case Assy, Rear |
|
- | |||||
| 9 | 5304482805 | Drain Plug, Drip Tray |
|
- | |||||
| 10 | 5304483728 | Bearing Block, Housing, W/o'ring |
|
$ 2.86 | |||||
| 11 | 5304502202 | O'ring, Bearing, Gasket/seal |
|
$ 20.48 | |||||
| 12 | 5304502357 | Blower Wheel, Cross Flow Fan |
|
- | |||||
| 13 | 5304502358 | Support, Evaporator |
|
- | |||||
| 14 | 5304502359 | Evaporator |
|
$ 381.73 | |||||
| 15 | 5304502360 | Bracket, Mounting Plate, Wall |
|
- | |||||
| 16 | 5304502361 | Housing, Motor Cover |
|
- | |||||
| 17 | 5304502362 | Motor, Blower Fan |
|
Immediately | $ 528.35 | ||||
| 18 | 5304483735 | Clamp, Drain Hose |
|
- | |||||
| 19 | 5304482780 | Hose, Drain |
|
- | |||||
| 20 | 5304483736 | Motor, Louver, Horizontal |
|
- | |||||
| 21 | 5304482907 | Lever, Louver Control, Crank |
|
- | |||||
| 22 | 5304483737 | Pc Board, Display/input |
|
$ 103.49 | |||||
| 23 | 5304483738 | Grille, Rear |
|
- | |||||
| 24 | 5304502363 | Louver, Horizontal |
|
- | |||||
| 25 | 5304502199 | Bushing, Lower Shaft |
|
$ 18.79 | |||||
| 27 | 5304502317 | Control Box |
|
- | |||||
| 28 | 5304482804 | Terminal Block, 4-bit |
|
- | |||||
| 29 | 5304502318 | Cover 2, Control Box |
|
- | |||||
| 30 | 5304502364 | Pc Board, Main, Control/power |
|
- | |||||
| 31 | 5304483599 | Shield, Interference, Electrical |
|
- | |||||
| 32 | 5304502320 | Cover 1, Control Box |
|
- | |||||
| 33 | 5304483741 | Connector, Electrical, Jumper |
|
- | |||||
| 36 | 5304459792 | Sensor, Ambient Temp, Thermistor |
|
$ 64.16 | |||||
| 37 | 5304502365 | Sensor, Temperature, Evaporator |
|
- | |||||
| 38 | 5304502215 | Remote Control, Transmitter |
|
$ 150.89 |
